960125 Series

Catalog

CONN RCPT 25POS 0.1 GOLD PCB R/A

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	Number of Rows	Voltage Rating	Connector Type	Insulation Height [z]	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Contact Finish - Mating	Insulation Height
3M Electronic Specialty 960125-7102-AR	Thermoplastic	40 Áin	1.02 Ám	Copper Alloy	Square	Right Angle Through Hole	0.13 "	3.3 mm	Black	1	1000 VDC	Receptacle	0.126 "	3.2 mm	-25 °C	125 °C	All	Solder	Flash	25	Tin	Female Socket	0.1 "	2.54 mm	2 A	Push-Pull	UL94 V-0	Gold

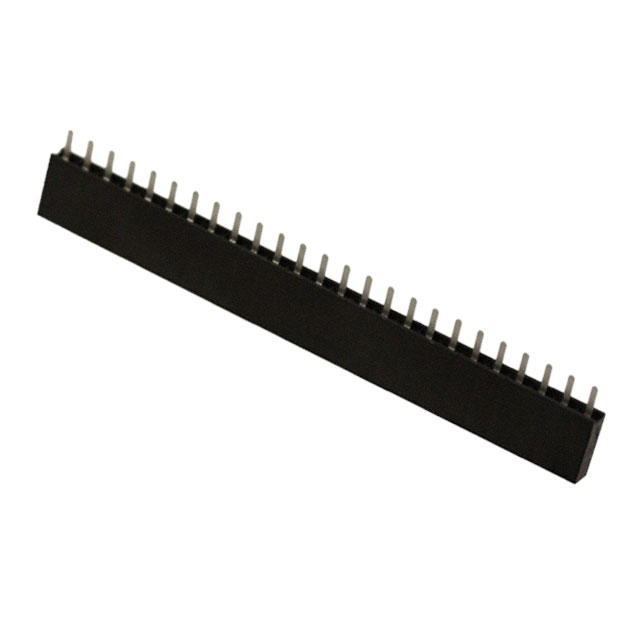

3M Electronic Specialty 960125-6202-AR	Thermoplastic	40 Áin	1.02 Ám	Copper Alloy	Square	Through Hole	0.118 in	3 mm	Black	1	1000 VDC	Receptacle		7.1 mm	-25 °C	105 ░C	All	Solder	Flash	25	Tin	Female Socket	0.1 "	2.54 mm	2 A	Push-Pull	UL94 V-0	Gold	0.28 in
3M Electronic Specialty 960125-8100-AR-TP	Thermoplastic	40 Áin	1.02 Ám	Copper Alloy	Square	Right Angle Surface Mount			Black	1	1000 VDC	Receptacle	0.126 "	3.2 mm	-25 °C	105 ░C	All	Solder	Flash	25	Tin	Female Socket	0.1 "	2.54 mm	2 A	Push-Pull	UL94 V-0	Gold
