PAXH01 Series
Manufacturer: Red Lion Controls
Beta
⌘K

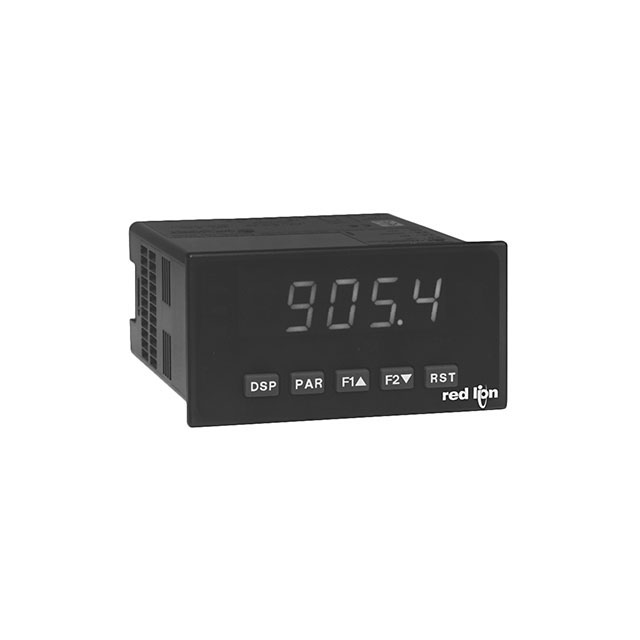

AMMETER/VOLTMETER LED PNL MOUNT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Measuring Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Characters Per Row | Display Characters - Height [custom] | Display Characters - Height [custom] | Mounting Type | Type | Ingress Protection | Output Type | Features | Termination Style | Display Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Measuring Range [Min] | Measuring Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Red Lion Controls | 50 °C | 0 °C | Current Voltage | 250 VAC | 85 VAC/DC | 5 | 14.2 mm | 0.56 in | Panel Mount | Ammeter Voltmeter | IP65 - Dust Tight Water Resistant | Option Cards Available | Excitation Supply Option Cards Available | Screw Terminal | Green Characters LED | 45 mm | 92 mm | 0 A 0 VAC | 5 A 300 VAC |
