AVD85 Series

Catalog

85W, 36 - 75VIN, SINGLE, 5V@17A, 91% EFF, SIXTEETH BRICK BASEPLATE, NEGATIVE LOGIC/PIN LENGTH:3.8MM

Part	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Efficiency	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [y]	Supplier Device Package	Control Features
ARTESYN / Advanced Energy AVD85-48S05B-6L	ITE (Commercial)	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	85 °C	-40 C	1.5 kV	5 V	75 V	Isolated Module	Through Hole	1	17 A	Sixteenth Brick	36 V	93.5 %	85 W

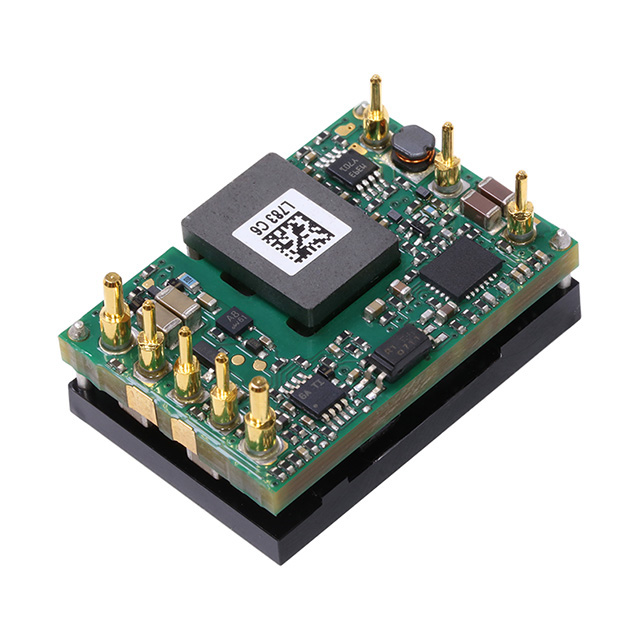

ARTESYN / Advanced Energy AVD85B-48S05B-6L	ITE (Commercial)							85 °C	-40 C	1.5 kV	5 V	75 V	Isolated Module	Through Hole	1	17 A	Sixteenth Brick	36 V	91.5 %	85 W	OCP OTP OVP Remote On/Off	1.3 in	0.47 "	12 mm 22.9 mm 33 mm	0.9 in	Sixteenth Brick

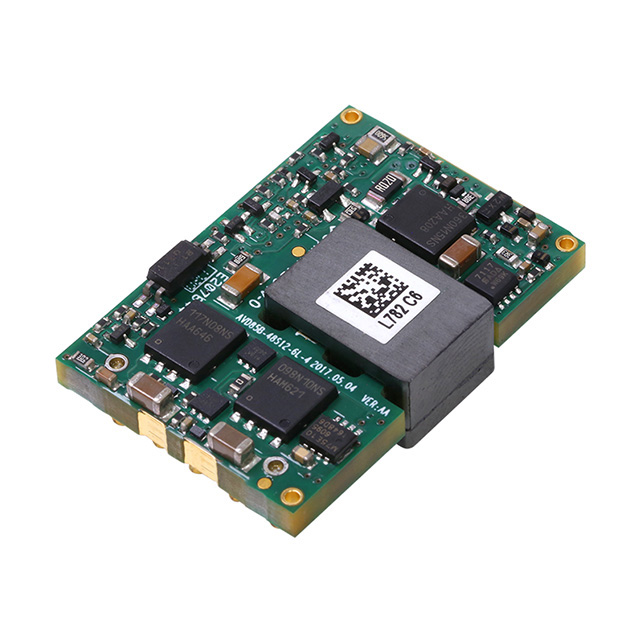

ARTESYN / Advanced Energy AVD85B-48S05TL	ITE (Commercial)	9.4 mm	22.9 mm	33 mm				85 °C	-40 C	1.5 kV	5 V	75 V	Isolated Module	Surface Mount	1	17 A	Sixteenth Brick	36 V	91.5 %	85 W	OCP OTP OVP Remote On/Off	1.3 in	0.37 in		0.9 in	Sixteenth Brick
ARTESYN / Advanced Energy AVD85B-48S12-6L	ITE (Commercial)	9.2 mm	22.9 mm	33 mm				85 °C	-40 C	1.5 kV	12 V	75 V	Isolated Module	Through Hole	1	7.1 A	Sixteenth Brick	36 V	93.3 %	85 W	OCP OTP OVP Remote On/Off	1.3 in	0.36 in		0.9 in	Sixteenth Brick
ARTESYN / Advanced Energy AVD85B-48S12B-6L	ITE (Commercial)							85 °C	-40 C	1.5 kV	12 V	75 V	Isolated Module	Through Hole	1	7.1 A	Sixteenth Brick	36 V	93.3 %	85 W	OCP OTP OVP Remote On/Off	1.3 in	0.47 "	12 mm 22.9 mm 33 mm	0.9 in	Sixteenth Brick
ARTESYN / Advanced Energy AVD85-48S12B-6L	ITE (Commercial)	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm				12 V	75 V	Isolated Module	Through Hole	1	7 A	8-DIP Module 1/16 Brick	36 V	92 %	85 W	Remote On/Off						Active Low Enable

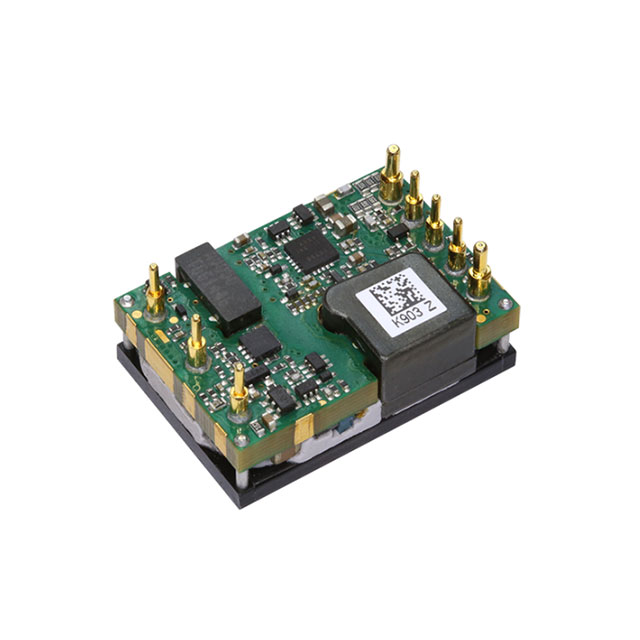

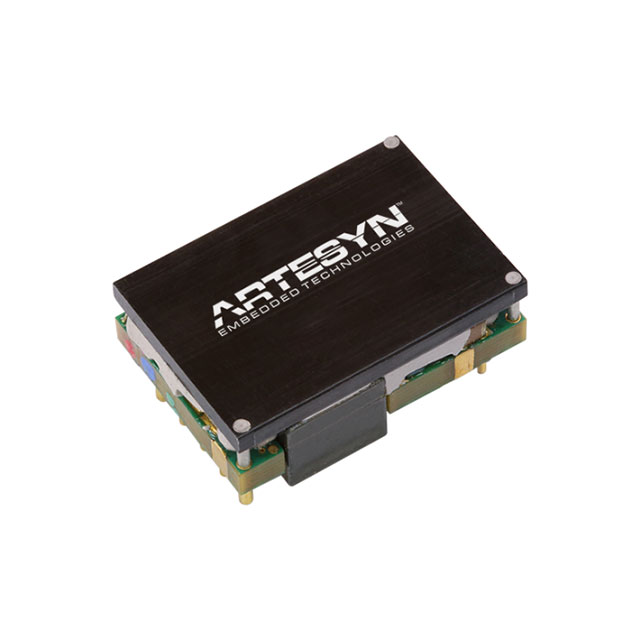

ARTESYN / Advanced Energy AVD85-48S05-6L	ITE (Commercial)	10 mm	22.9 mm	33 mm				85 °C	-40 C	1.5 kV	5 V	75 V	Isolated Module	Through Hole	1	17 A	Sixteenth Brick	36 V	93.5 %	85 W		1.3 in	0.39 "		0.9 in

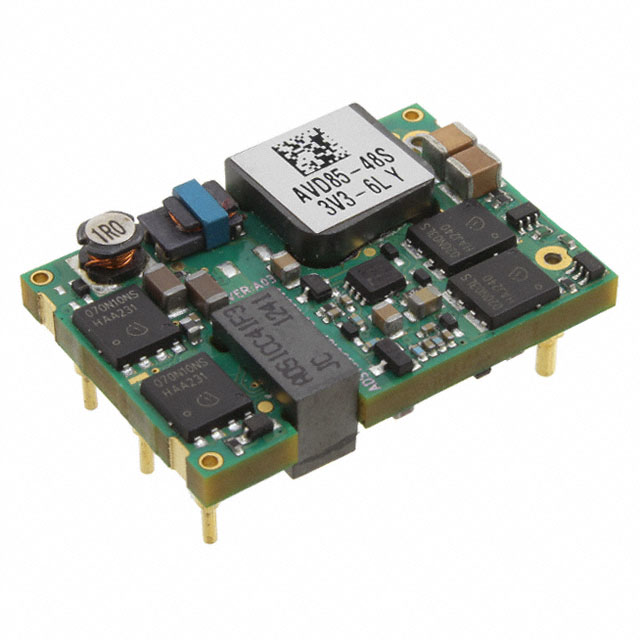

ARTESYN / Advanced Energy AVD85-48S3V3-6L	ITE (Commercial)	10.5 mm	22.9 mm	33 mm							3.3 V	75 V	Isolated Module	Through Hole	1	25 A	8-DIP Module 1/16 Brick	36 V	92 %	85 W	Remote On/Off	1.3 in	0.41 in		0.9 in		Active Low Enable
ARTESYN / Advanced Energy AVD85-48S3V3B-6L	ITE (Commercial)	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm				3.3 V	75 V	Isolated Module	Through Hole	1	25 A	8-DIP Module 1/16 Brick	36 V	92 %	85 W	Remote On/Off						Active Low Enable
