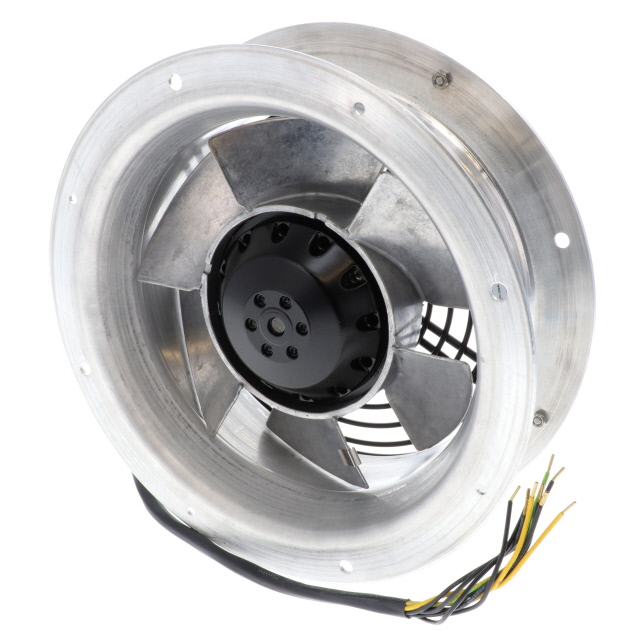

W2D170 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL
| Part | Current Rating (Amps) [Min] | Current Rating (Amps) [Max] | Material - Blade [custom] | Width [x] | Size / Dimension | Size / Dimension [diameter] | Ingress Protection | Voltage - Rated [Max] | Voltage - Rated [Min] | Approval Agency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Bearing Type | Fan Type | RPM | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 0.09 A | 0.16 A | Aluminum | 72 mm | Round | 240 mm | IP44 | 400 VAC | 230 VAC | CE CSA UL | 43 W | 70 °C | -25 °C | 9 Wire Leads with Splice Terminals | Ball | 3 Phase Tubeaxial | 3100 RPM | Dual Voltage Thermal Overload Protector (TOP) |
