SV Series

Manufacturer: Chemi-Con

Catalog

VARISTORS 42VDC 56V 125A AEC-Q200

Part	Package / Case	Varistor Voltage (Typ)	Grade	Energy	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Mounting Type	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Current - Surge	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Maximum AC Volts [Max]	Maximum DC Volts	Varistor Voltage (Max)
Chemi-Con TND05SV560KTBAAAA0	Disc 5mm	56 V	Automotive	1.3 J	1	125 °C	-40 °C	AEC-Q200	Through Hole	62 V	42 V	125 A	50 V	1700 pF	30 V
Chemi-Con TND12SV681KTLBPAA0	Disc 12mm	680 V	Automotive	67 J	1	125 °C	-40 °C	AEC-Q200	Through Hole	748 V	560 V	4.2 kA	612 V	260 pF	420 V
Chemi-Con TND10SV680KTBAAAA0	Disc 10mm	68 V	Automotive	8.2 J	1	125 °C	-40 °C	AEC-Q200	Through Hole			500 A	61 V	1 kHz 5400 pF	40 V	55 V	75 V
Chemi-Con TND10SV471KTLBPAA0	Disc 10mm	470 V	Automotive	60 J	1	125 °C	-40 °C	AEC-Q200	Through Hole	517 V	385 V	3.5 kA	423 V	220 pF	300 V
Chemi-Con TND10SV681KTLBPAA0	Disc 10mm	680 V	Automotive	67 J	1	125 °C	-40 °C	AEC-Q200	Through Hole	748 V	560 V	3.5 kA	612 V	165 pF	420 V

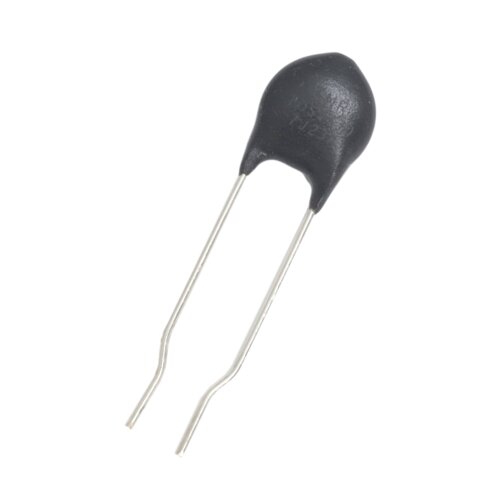

Chemi-Con TND10SV511KTLBPSA0	Disc 10mm	510 V	Automotive	67 J	1	125 °C	-40 °C	AEC-Q200	Through Hole	561 V	410 V	3.5 kA	459 V	210 pF	320 V
Chemi-Con TND07SV431KTBAAAA0	Disc 7mm	430 V	Automotive	27.5 J	1	125 °C	-40 °C	AEC-Q200	Through Hole		350 V	1750 A	387 V	130 pF	275 V		473 V
Chemi-Con TND10SV621KTLBPSA0	Disc 10mm	620 V	Automotive	67 J	1	125 °C	-40 °C	AEC-Q200	Through Hole		505 V	3.5 kA	558 V	180 pF	385 V
