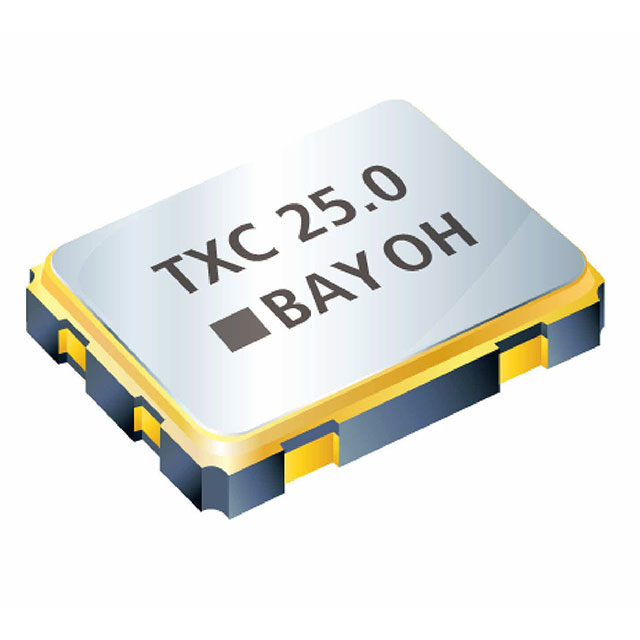

7CL Series

Catalog

STANDARD CLOCK OSCILLATORS 5.0X3.2 TIGHT STABILITY & WIDE TEMP CMOS QUARTZ OSCILLATOR / CERAMIC, 3.3V, +/-25PPM (-40 TO 85C)

Part	Voltage - Supply	Frequency Stability	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Base Resonator [custom]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Type	Current - Supply (Max) [Max]	Frequency	Function	Mounting Type
TXC CORPORATION 7CL-75.000MBD-T	3.3 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	75 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-29.4912MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	29.4912 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-2.000MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	2 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-33.000MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	33 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-19.200MBD-T	3.3 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	19.2 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-161.1328MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	161.1328 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-24.000MBD-T	3.3 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	24 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-4.096MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	4.096 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-18.432MDD-T	1.8 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA	18.432 MHz	Enable/Disable	Surface Mount
TXC CORPORATION 7CL-66.6670MBD-T	3.3 V	25 ppm	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	CMOS	85 °C	-40 C	0.055 in	1.4 mm	4-SMD No Lead	XO (Standard)	30 mA		Enable/Disable	Surface Mount
