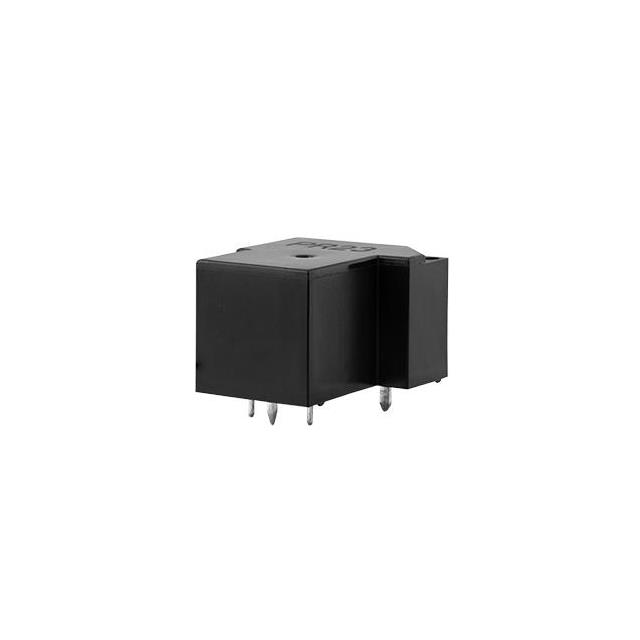

PR23-5V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 5V
| Part | Coil Resistance | Load - Max Switching | Must Release Voltage | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Switching Voltage [Max] | Contact Rating (Current) | Termination Style | Contact Form | Mounting Type | Must Operate Voltage | Coil Voltage | Operate Time | Coil Type | Release Time | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 27.8 Ohms | 840 W 7500 VA | 0.5 VDC | General Purpose | 85 °C | -40 C | Silver Alloy | 28 VDC 250 VAC | 30 A | PC Pin | SPST-NO (1 Form A) | Through Hole | 3.5 VDC | 5 VDC | 15 ms | Non Latching | 10 ms | 179.9 mA |
 Same Sky (Formerly CUI Devices) | 840 W 7500 VA | 0.5 VDC | General Purpose | 85 °C | -40 C | Silver Alloy | 28 VDC 250 VAC | 20 A | PC Pin | SPDT (1 Form C) | Through Hole | 3.5 VDC | 5 VDC | 15 ms | Non Latching | 10 ms | 179.9 mA | |
Same Sky (Formerly CUI Devices) | 27.8 Ohms | 840 W 7500 VA | 0.5 VDC | General Purpose | 85 °C | -40 C | Silver Alloy | 28 VDC 250 VAC | 30 A | PC Pin | SPDT (1 Form C) | Through Hole | 3.5 VDC | 5 VDC | 15 ms | Non Latching | 10 ms | 179.9 mA |
Same Sky (Formerly CUI Devices) | 27.8 Ohms | 840 W 7500 VA | 0.5 VDC | General Purpose | 85 °C | -40 C | Silver Alloy | 28 VDC 250 VAC | 30 A | PC Pin | SPST-NO (1 Form A) | Through Hole | 3.5 VDC | 5 VDC | 15 ms | Non Latching | 10 ms | 179.9 mA |
