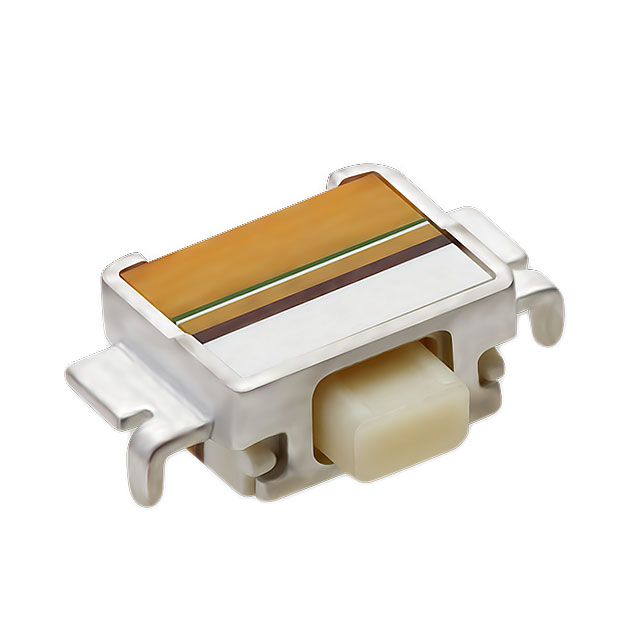

LS12P2 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 12V
| Part | Mechanical Life | Switch Travel | Mounting Type | Actuator Type | Switch Function | Actuator Orientation | Termination Style | Operating Force | Actuator Length, Right Angle | Contact Rating @ Voltage | Circuit | Illumination | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 100000 Cycles | 0.2 mm | Right Angle Surface Mount | Rectangular Button | Off-Mom | Side Actuated | SMD (SMT) Tab | 160 gf | 1.35 mm | 0.02 A 12 VDC | SPST-NO | Non-Illuminated | 5.35 mm | 2.85 mm |
