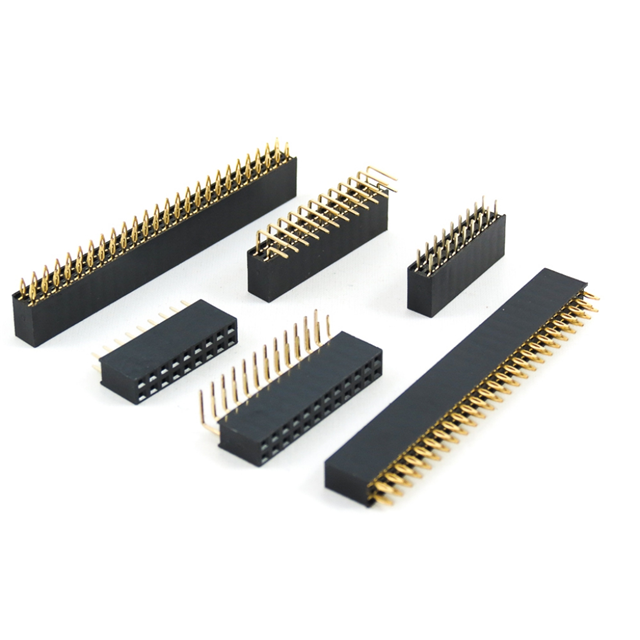

2044-2 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, DOUBLE ROW, 36 PIN,

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Termination	Number of Positions	Connector Type	Number of Rows [custom]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]
Oupiin 2044-2X18G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	36	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
Oupiin 2044-2X20G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	40	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
Oupiin 2044-2X03TSB	Glass Filled Polyester Thermoplastic	Square		Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket		2 A	0.1 in	2.54 mm		Solder	6	Socket	2	All	-55 C	105 ░C			Push-Pull	Tin	0.335 in	8.5 mm
Oupiin 2044-2X06G00RA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Right Angle Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	12	Socket	2	All	-55 C	105 ░C	0.197 "	5 mm	Push-Pull	Gold
Oupiin 2044-2X20G00RA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Right Angle Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	40	Socket	2	All	-55 C	105 ░C	0.197 "	5 mm	Push-Pull	Gold
Oupiin 2044-2X17G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder		Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold			34
Oupiin 2044-2X23G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	46	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
Oupiin 2044-2X13G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	26	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
Oupiin 2044-2X25G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	50	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
Oupiin 2044-2X40G00SA	Glass Filled Polyester Thermoplastic	Square	Flash	Copper Alloy	UL94 V-0	0.126 "	3.2 mm	0.1 "	2.54 mm	Through Hole	Female Socket	Gold	2 A	0.1 in	2.54 mm	Flash	Solder	80	Socket	2	All	-55 C	105 ░C	0.335 "	8.51 mm	Push-Pull	Gold
