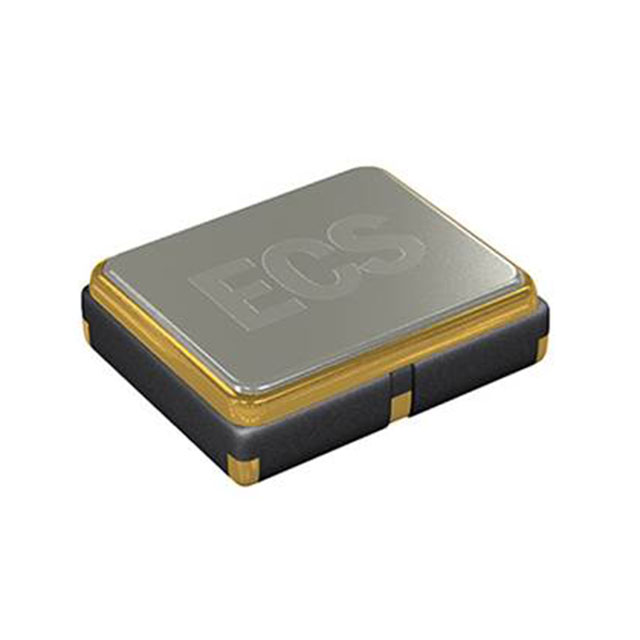

ECS-1612MV Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 8MHZ CMOS 1.6-3.6V

Part	Current - Supply (Disable) (Max) [Max]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Function	Frequency	Output	Mounting Type	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency Stability	Base Resonator [custom]
ECS Inc. ECS-1612MV-080-CN-TR	10 µA	4-SMD No Lead	1.2	1.6	4-SMD	XO (Standard)	0.7 mm	0.028 "	3.63 V	1.6 V	85 °C	-40 C	Standby (Power Down)	8 MHz	CMOS	Surface Mount	4 mA	1.6 mm	1.2 mm	0.047 in	0.063 "	25 ppm	Crystal
ECS Inc. ECS-1612MV-120-CN-TR	10 µA	4-SMD No Lead	1.2	1.6	4-SMD	XO (Standard)	0.7 mm	0.028 "	3.63 V	1.6 V	85 °C	-40 C	Standby (Power Down)	12 MHz	CMOS	Surface Mount	4 mA	1.6 mm	1.2 mm	0.047 in	0.063 "	25 ppm	Crystal
ECS Inc. ECS-1612MV-073-CN-TR	10 µA	4-SMD No Lead	1.2	1.6	4-SMD	XO (Standard)	0.7 mm	0.028 "	3.3 V	1.8 V	85 °C	-40 C	Standby (Power Down)	7.3 MHz	HCMOS	Surface Mount		1.6 mm	1.2 mm	0.047 in	0.063 "	25 ppm	Crystal
