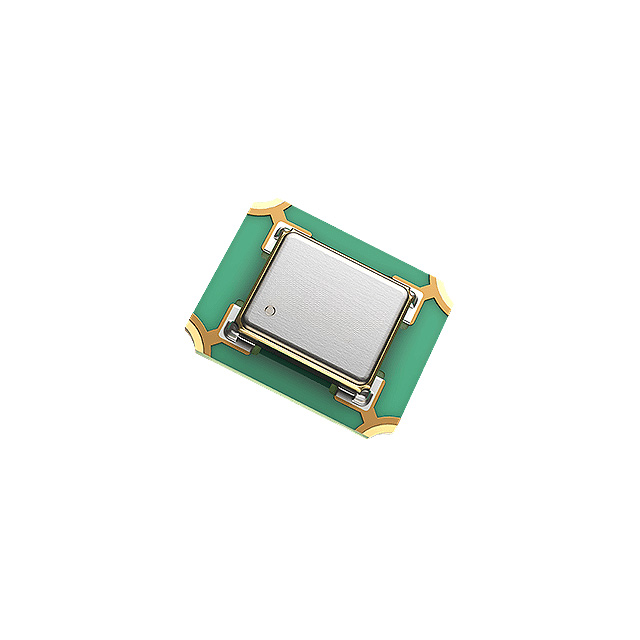

KC3225Z Series

Catalog

STANDARD CLOCK OSCILLATORS CLOCK OSCILLITORS

Part	Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Frequency	Output	Current - Supply (Disable) (Max)	Voltage - Supply
KYOCERA AVX KC3225Z32.7680C1KX00	Standby (Power Down)	85 °C	-40 C	XO (Standard)	8 mA	3.63 V	1.71 V	20 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	32.768 MHz	CMOS
KYOCERA AVX KC3225Z4.00000C1KX00	Standby (Power Down)	85 °C	-40 C	XO (Standard)	5.8 mA	3.63 V	1.71 V	20 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	4 MHz	CMOS
KYOCERA AVX KC3225Z26.0000C1GX00	Standby (Power Down)	85 °C	-40 C	XO (Standard)	7.3 mA			50 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	26 MHz	CMOS	5 µA	1.8 V 2.5 V 3.3 V
KYOCERA AVX KC3225Z40.0000C15XXK	Standby (Power Down)	105 ░C	-40 C	XO (Standard)	8 mA	3.63 V	1.71 V	30 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	40 MHz	CMOS
KYOCERA AVX KC3225Z20.0000C15XXK	Standby (Power Down)	105 ░C	-40 C	XO (Standard)	7.3 mA	3.63 V	1.71 V	30 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	20 MHz	CMOS
KYOCERA AVX KC3225Z28.6364C15XXK	Standby (Power Down)	105 ░C	-40 C	XO (Standard)	7.3 mA	3.63 V	1.71 V	30 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount		CMOS
KYOCERA AVX KC3225Z22.5792C1KX00	Standby (Power Down)	85 °C	-40 C	XO (Standard)	7.3 mA	3.63 V	1.71 V	20 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	Crystal	0.031 in	0.8 mm	Surface Mount	22.5792 MHz	CMOS
