1SS400 Series

High-speed switching, 80V, 100mA, Switching Diode

Catalog

High-speed switching, 80V, 100mA, Switching Diode

Part	Operating Temperature - Junction (Max)	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Mounting Type	Voltage - Forward (Vf) (Max)	Grade	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage	Current - Average Rectified (Io)	Package Name	Qualification	Reverse Recovery Time (trr)	Package / Case	Technology	Capacitance
Rohm Semiconductor 1SS400T9TE61
Rohm Semiconductor 1SS400SMFHT2R	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V	Automotive	80 V	100 nA	100 mA	EMD2	AEC-Q101	4 ns	SC-79 SOD-523	Standard	3 pF
Rohm Semiconductor 1SS400TE61	125 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V		80 V	100 nA	100 mA	EMD2		4 ns	SC-79 SOD-523	Standard	3 pF

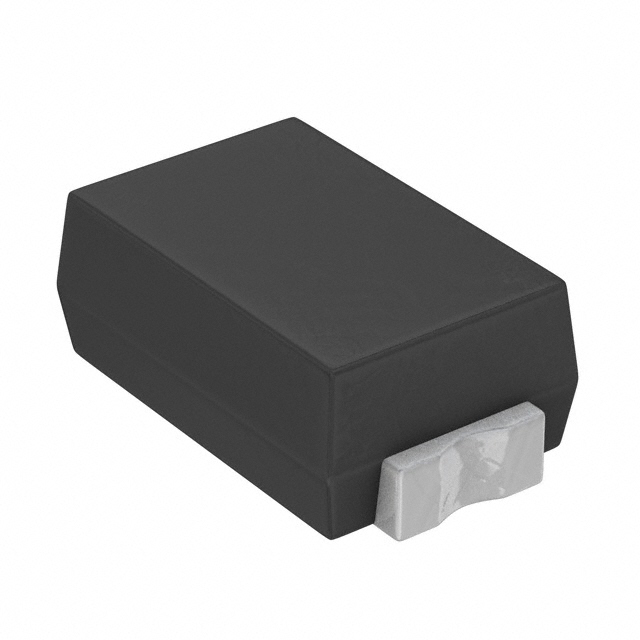

Rohm Semiconductor 1SS400CSFHT2RA	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V	Automotive	80 V	100 nA	100 mA	VMN2 (SOD-923)	AEC-Q101	4 ns	2-SMD Flat Leads	Standard	3 pF
Rohm Semiconductor 1SS400SMT2R	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V		80 V	100 nA	100 mA	EMD2		4 ns	SC-79 SOD-523	Standard	3 pF
Rohm Semiconductor 1SS400CST2R	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V		80 V	100 nA	100 mA	VMN2 (SOD-923)			2-SMD Flat Leads	Standard	3 pF

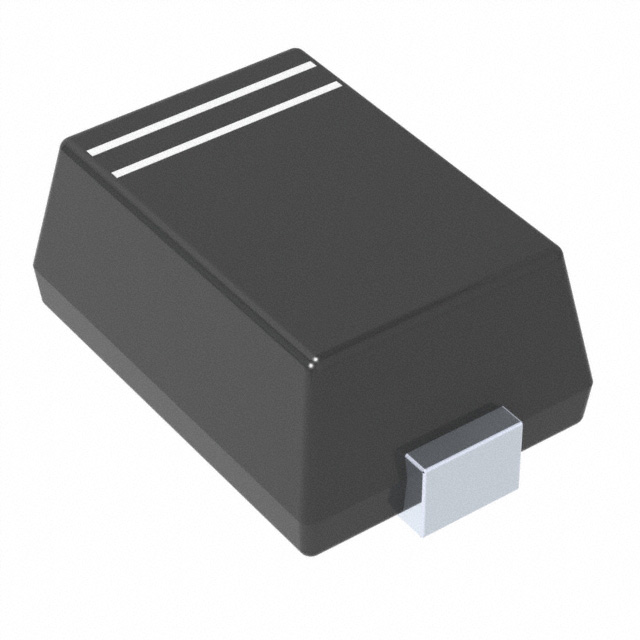

Rohm Semiconductor 1SS400CST2RA	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V		80 V	100 nA	100 mA	VMN2 (SOD-923)		4 ns	2-SMD Flat Leads	Standard	3 pF
Rohm Semiconductor 1SS400GT2R	150 °C	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Surface Mount	1.2 V		80 V	100 nA	100 mA	VMD2		4 ns	SOD-723	Standard	3 pF

High-speed switching, 80V, 100mA, Switching Diode

ROHM's switching diodes, including diode arrays, are available in high-reliability packages and stable supply for various applications.
