960120 Series

Catalog

CONN RCPT 20POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Mating	Insulation Color	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows	Voltage Rating	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish - Post	Insulation Height [z]

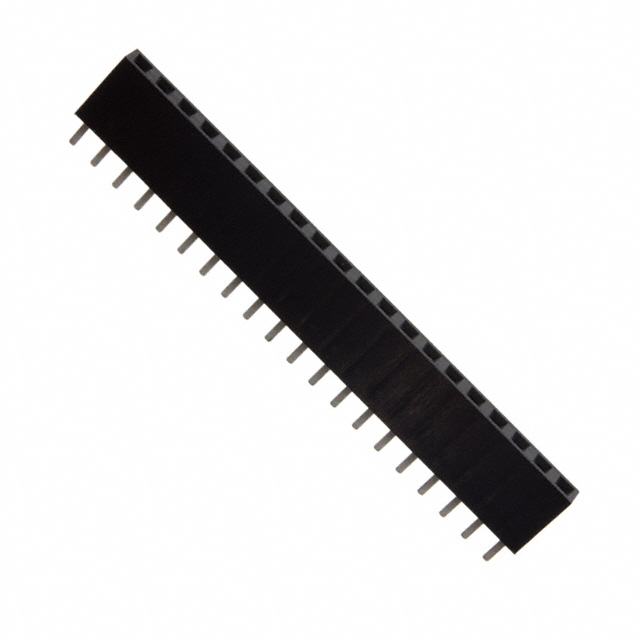

3M Electronic Specialty 960120-6202-AR	Square	Thermoplastic	Copper Alloy	40 Áin	1.02 Ám	0.28 in	7.1 mm	Through Hole	Gold	Black	Female Socket	0.118 in	3 mm	1	1000 VDC	2 A	20	0.1 "	2.54 mm	UL94 V-0	Solder	Flash	Push-Pull	Receptacle	105 ░C	-25 °C	All	Tin
3M Electronic Specialty 960120-7102-AR	Square	Thermoplastic	Copper Alloy	40 Áin	1.02 Ám		3.2 mm	Right Angle Through Hole	Gold	Black	Female Socket	0.13 "	3.3 mm	1	1000 VDC	2 A	20	0.1 "	2.54 mm	UL94 V-0	Solder	Flash	Push-Pull	Receptacle	125 °C	-25 °C	All	Tin	0.126 "
