2177419 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

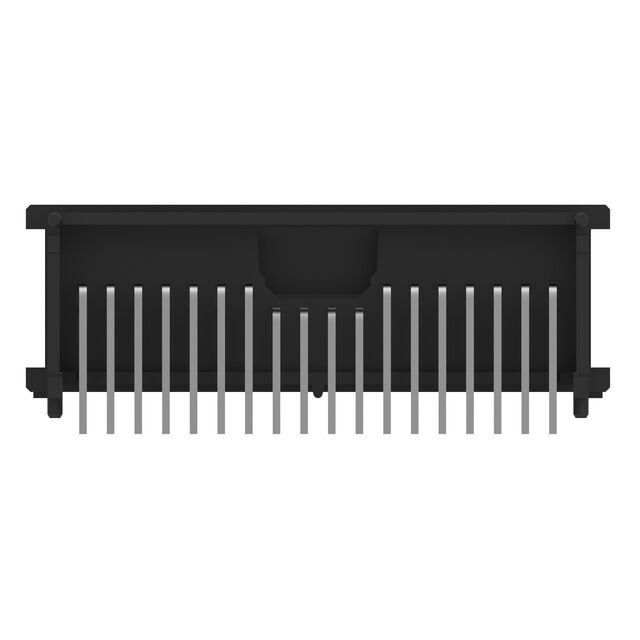

AUTOMOTIVE CONN, HDR, 32POS, 12VDC ROHS COMPLIANT: YES
| Part | Shrouding | Fastening Type | Mounting Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Termination | Insulation Height [z] | Insulation Height [z] | Style | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Number of Rows | Connector Type | Contact Material | Voltage Rating | Contact Shape | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Detent Lock | Board Edge Right Angle Through Hole | 0.071 in | 1.8 mm | UL94 V-0 | Black | All | Solder | 12.6 mm | 0.496 in | Board to Cable/Wire | 1.5 mm | 0.059 in | Male Blade | 2 | Header | Copper Alloy | 12 V | Rectangular | Board Guide |
