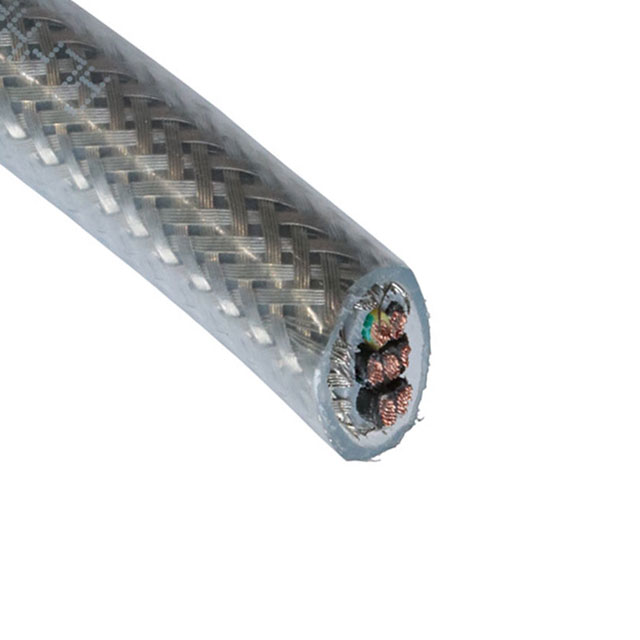

470715CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, PRO-MET®, CY CONTROL, SHIELDED, 7 CONDUCTOR, 15 AWG, 1.5 MM², 328 FT, 100 M
| Part | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Number of Conductors | Features | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Usage | Length [x] | Length [x] | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [diameter] | Shield Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 80 °C | -40 C | 80 % | 7 | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 300 VDC | 1.1 mm | 0.0433 in | Poly-Vinyl Chloride (PVC) | Industrial | 328.1 ft | 100 m | Braid | 15 AWG | 28 | 0.0098 in | Copper Tinned | Clear | 11.63 mm | 0.458 in | Multi-Conductor | ||
ALPHA WIRE | Copper Bare | 80 °C | -40 C | 80 % | 7 | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 300 VDC | 1.1 mm | 0.0433 in | Poly-Vinyl Chloride (PVC) | Industrial | 98.43 ft 984.3 ft | 30 m 300 m | Braid | 15 AWG | 28 | 0.0098 in | Copper Tinned | Clear | 11.63 mm | 0.458 in | Multi-Conductor | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft |
 ALPHA WIRE | Copper Bare | 80 °C | -40 C | 80 % | 7 | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 300 VDC | 1.1 mm | 0.0433 in | Poly-Vinyl Chloride (PVC) | Industrial | 98.43 ft | 30 m | Braid | 15 AWG | 28 | 0.0098 in | Copper Tinned | Gray | 11.63 mm | 0.458 in | Multi-Conductor | 20 m | 65.62 ft |
