NPTC321 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

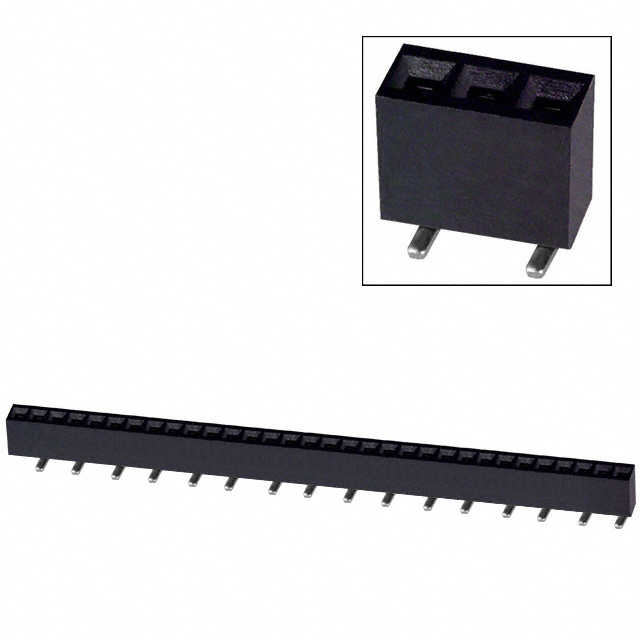

CONN HDR 32POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Insulation Color | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Material Flammability Rating | Insulation Height | Insulation Height | Connector Type | Mounting Type | Termination | Number of Rows | Fastening Type | Contact Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | Black | All | -40 C | 105 ░C | 250 V | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | 0.28 in | 7.1 mm | Header Top or Bottom Entry | Surface Mount | Solder | 1 | Push-Pull | Female Socket | Tin |
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | All | -40 C | 105 ░C | 250 V | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | 0.28 in | 7.1 mm | Header Top or Bottom Entry | Surface Mount | Solder | 1 | Push-Pull | Female Socket | Tin |
