ISNB Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

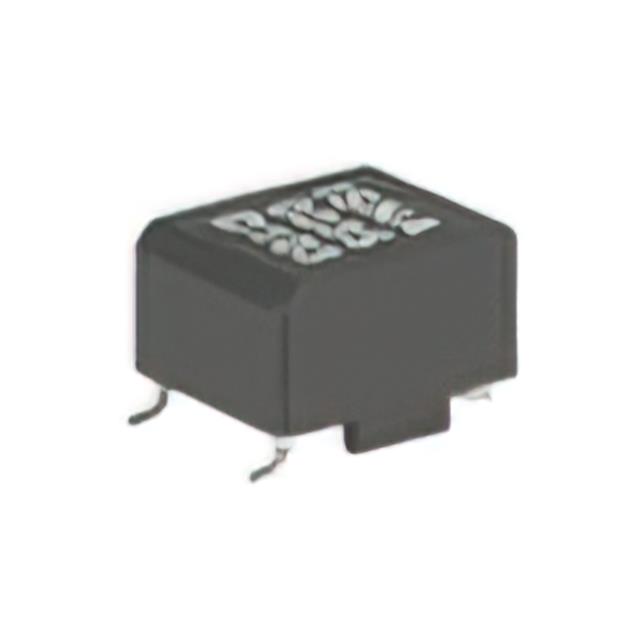

ISNB PULSE TRANSFORMER SMD 0.17A
| Part | Weight [diameter] | Weight [diameter] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ET (Volt-Time) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Turns Ratio - Primary:Secondary [custom] | Inductance | Transformer Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.32 oz | 9.12 g | 0.894 in | 22.3 mm | 0.878 " | 22.7 mm | 350 Vµs | 14 mm | 0.551 in | 100 °C | -25 °C | Surface Mount | 2:1 | 1.8 mH | SCR and Triac Trigger (Encapsulated) |
