DE09S365 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

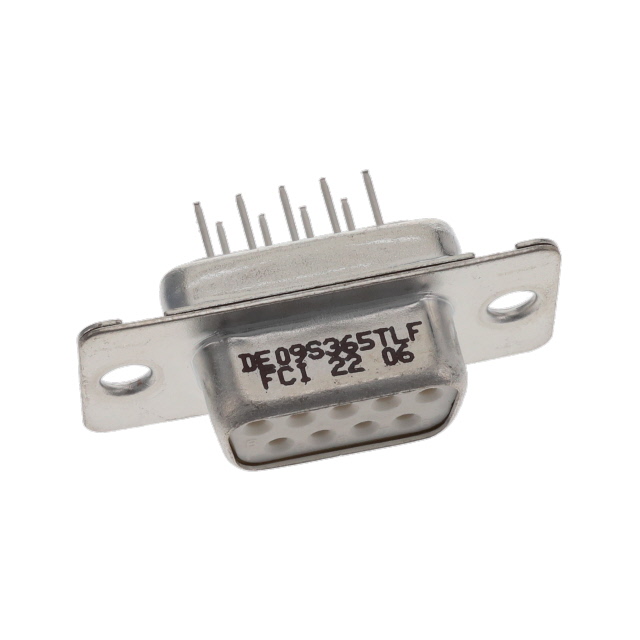

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Connector Type | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Connector Style | Contact Type | Dielectric Material | Current Rating (Amps) | Number of Rows | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Receptacle Female Sockets | 300 VDC | Copper Alloy | -55 °C | 125 °C | Housing/Shell (Unthreaded) | D-Sub | Signal | Thermoplastic | 5 A | 2 | DE E | 1 | Solder | Gold GXT™ | 9 | 0.76 Ám | 30 Áin | Through Hole |
