1T Series

Manufacturer: LEMO

Catalog

CIRCULAR PUSH PULL CONNECTORS

Part	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Shielding	Color	Shell Material	Ingress Protection	Number of Positions	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Fastening Type	Current Rating (Amps)	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Material Flammability Rating	Shell Finish	Connector Type	Termination	Shell Size - Insert [custom]	Mounting Feature	Insert Material	Shell Size - Insert [custom]
LEMO FGG.1T.306.CLAC60	Metal	0.236 in	0.22 in	6 mm	5.6 mm	Shielded	Silver	Brass	IP68 - Dust Tight Waterproof	6	306	Gold	Free Hanging (In-Line)	Push-Pull	7 A	G	200 °C	-55 C	Backshell	UL94 V-0	Chrome	Plug Male Pins
LEMO FGG.1T.314.CLAC35	Metal	0.138 in	0.122 in	3.5 mm	3.1 mm	Shielded	Silver	Brass	IP66 IP68	14	314	Gold	Free Hanging (In-Line)	Push-Pull	2 A	G	200 °C	-55 C	Backshell	UL94 V-0	Chrome	Plug Male Pins
LEMO FGG.1T.307.CYCC50Z	Metal	0.197 in	0.181 "	5 mm	4.6 mm	Shielded	Silver	Brass	IP68 - Dust Tight Waterproof	7		Gold	Free Hanging (In-Line)	Push-Pull	7 A	G	200 °C	-55 C	Backshell	UL94 V-0	Chrome	Plug Male Pins	Crimp	307
LEMO FGG.1T.314.KLAC65	Metal	0.256 in	0.24 "	6.5 mm	6.1 mm	Shielded	Black	Brass	IP66 IP68	14	314	Gold	Free Hanging (In-Line)	Push-Pull	2 A	G	200 °C	-55 C	Backshell	UL94 V-0	Black Chromate	Plug Male Pins
LEMO FGG.1T.304.CYCC40	Metal	0.157 in	0.142 in	4 mm	3.6 mm	Shielded	Silver	Brass	IP68 - Dust Tight Waterproof	4	304	Gold	Free Hanging (In-Line)	Push-Pull	10 A	G	200 °C	-55 C	Backshell	UL94 V-0	Chrome	Plug Male Pins	Crimp
LEMO EAG.1T.512.CTN	Metal					Shielded	Silver	Brass	IP68 - Dust Tight Waterproof	12	512	Gold	Panel Mount Through Hole	Push-Pull		G	200 °C	-55 C			Chrome	Receptacle Female Sockets	Solder		Front and Rear Side Nut	Polytetrafluoroethylene (PTFE)
LEMO FGG.1T.316.CLAC65Z	Metal	0.256 in	0.24 "	6.5 mm	6.1 mm	Shielded	Silver	Brass	IP66 IP68	16		Gold	Free Hanging (In-Line)	Push-Pull	1.5 A	G	200 °C	-55 C	Backshell	UL94 V-0	Chrome	Plug Male Pins					316

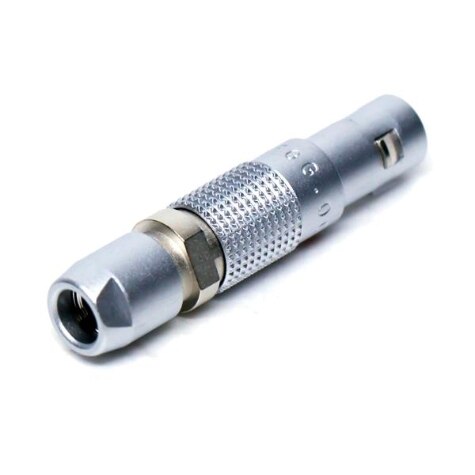

LEMO FGG.1T.314.KLAC40	Metal	0.157 in	0.142 in	4 mm	3.6 mm	Shielded	Black	Brass	IP66 IP68	14	314	Gold	Free Hanging (In-Line)	Push-Pull	2 A	G	200 °C	-55 C	Backshell	UL94 V-0	Black Chromate	Plug Male Pins
