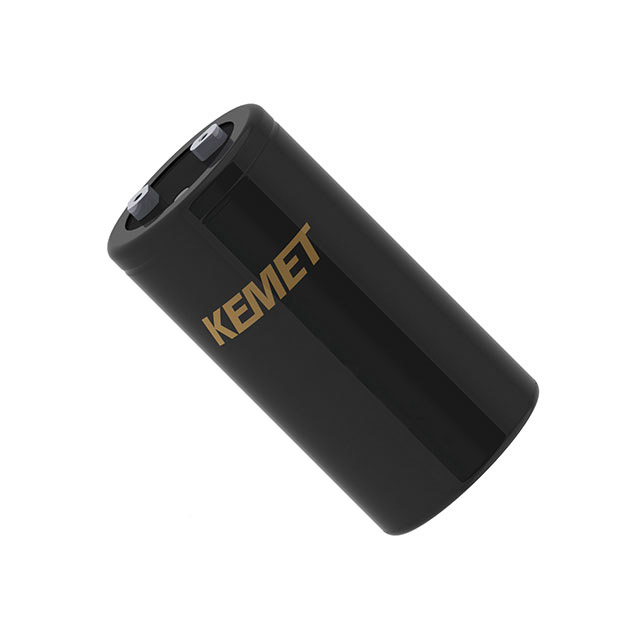

ALS71C Series

Manufacturer: KEMET

Catalog

Catalog

CAP ALUM 47000UF 20% 200V SCREW

...

Part	Polarization	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Applications	Lead Spacing	Lead Spacing	Voltage - Rated	Mounting Type	Ripple Current @ High Frequency	Impedance	Capacitance	Tolerance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALS71C473QT200	Polar	11 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	200 VDC	Chassis Mount	37.8 A	10 mOhms	47 mF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	32.4 A	3.543 in	90 mm
KEMET ALS71C274QC025	Polar	13 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	25 VDC	Chassis Mount	23.7 A	13 mOhms	270000 µF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	23 A	3.543 in	90 mm	2.717 in	69 mm
KEMET ALS71C512QC350	Polar	46 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	350 V	Chassis Mount	18.1 A	30 mOhms	5.1 mF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	12.9 A	3.543 in	90 mm	2.717 in	69 mm
KEMET ALS71C564NP025	Polar	8 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	25 VDC	Chassis Mount	31.9 A	9 mOhms	560000 µF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	31.3 A	3.031 in	77 mm	5.827 in	148 mm
KEMET ALS71C123LM200	Polar	29 mOhm	19000 Hrs	General Purpose	1.122 in	28.5 mm	200 VDC	Chassis Mount	23.5 A	21 mOhms	12000 µF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	17.3 A	2.5 in	63.5 mm			5.236 "	133 mm
KEMET ALS71C163QS450	Polar	16 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	450 V	Chassis Mount	36.2 A	12 mOhms	16000 µF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	27.2 A	3.543 in	90 mm			7.717 in	196 mm
KEMET ALS71C432QC400	Polar	48 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	400 V	Chassis Mount	18.1 A	31 mOhms	4.3 mF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	12.4 A	3.543 in	90 mm	2.717 in	69 mm
KEMET ALS71C562NP500	Polar	49 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	500 V	Chassis Mount	24 A	38 mOhms	5.6 mF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	16.6 A	3.031 in	77 mm	5.827 in	148 mm
KEMET ALS71C133QW450	Polar	19 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	450 V	Chassis Mount	33.9 A	14 mOhms	13000 µF	20 %	Radial Can - Screw Terminals	85 °C	-40 C		3.543 in	90 mm	6.732 in	171 mm
KEMET ALS71C562QH500	Polar	50 mOhm	20000 Hrs	General Purpose	1.252 in	31.8 mm	500 V	Chassis Mount	24 A	38 mOhms	5.6 mF	20 %	Radial Can - Screw Terminals	85 °C	-40 C	16.7 A	3.543 in	90 mm			3.937 in	100 mm
