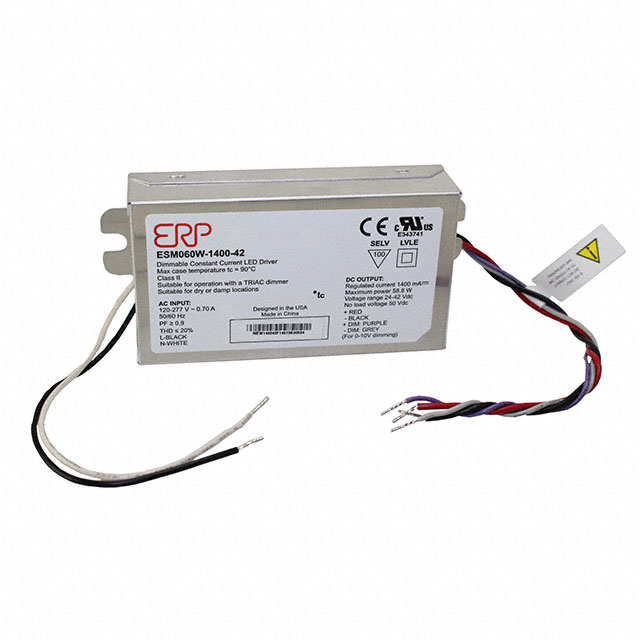

ESM060W Series
Manufacturer: ERP Power, LLC
Beta
⌘K
LED POWER SUPPLIES 120 TO 277 VAC, 87% EFFICIENCY, RECTANGULAR METAL CASE (BOTTOM LEADS WITH STUDS), TRI-MODE DIMMING (FORWARD, REVERSE PHASE & 0-10V), 1-100% DIMMING RANGE, 58.8 W MAX, 1400 MA IOUT, 42 V MAX VOUT
| Part | Weight [custom] | Weight [custom] | Mounting Type | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output [Max] | Voltage - Output [Min] | Topology | Current - Output (Max) [Max] | Dimming | Approval Agency | Efficiency | Voltage - Input (Min) [Min] | Number of Outputs | Features | Termination Style | Type | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | 252 g | 0.556 lb | Chassis Mount | 277 VAC | -30 ░C | 90 °C | 59 W | 60.3 mm | 106.7 mm | 2.37 in | 25.2 mm | 4.2 " | 0.99 " | 42 V | 28 V | AC DC Converter | 1.4 A | ELV TRIAC | CB CE cRUcs cUL FC UL | 87 % | 120 VAC | 1 | OCP OTP SCP | Wire Leads | Constant Current | IP20 NEMA 410 |
