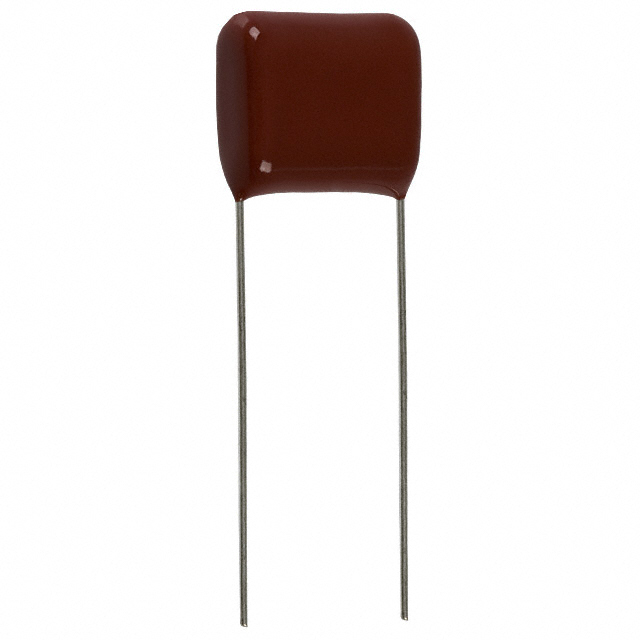

ECQ-E2105 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 1UF 10% 250VDC RADIAL

Part	Voltage Rating - DC	Lead Spacing	Lead Spacing	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Size / Dimension [y]	Height - Seated (Max) [Max]

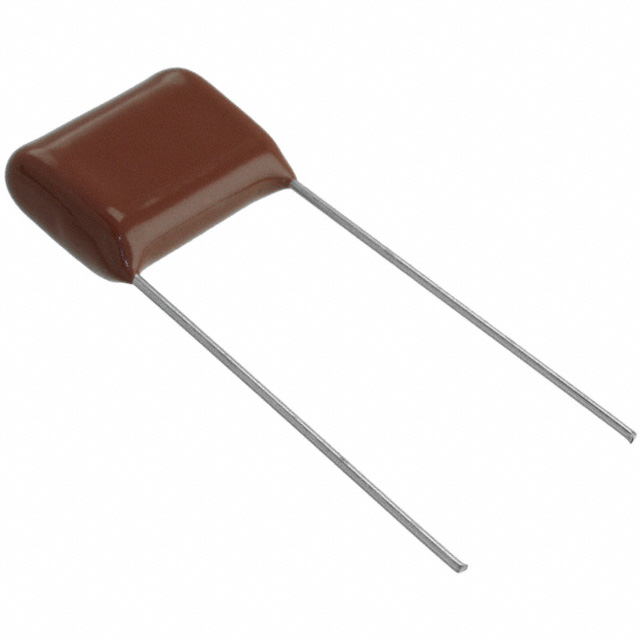

Panasonic Electronic Components ECQ-E2105RKF	250 V	15 mm	0.591 in	Radial	General Purpose	0.787 in	20 mm	10 %	1 µF	0.728 in	7.4 mm	0.291 "	18.5 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins
Panasonic Electronic Components ECQ-E2105RKB	250 V	0.492 in		Radial	General Purpose			10 %	1 µF	0.602 "		0.276 in	15.3 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins	0.748 in	19 mm	12.5 mm	7 mm

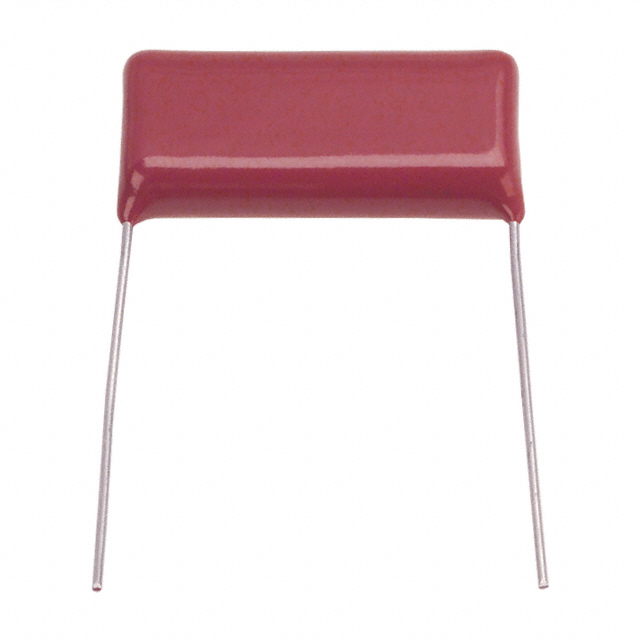

Panasonic Electronic Components ECQ-E2105KS	250 V	27.5 mm	1.083 in	Radial	General Purpose	14.5 mm		10 %	1 µF	1.22 in		0.295 in	31 mm	-40 C	85 °C	Through Hole	Polyester Metallized	PC Pins				7.5 mm	0.571 "
Panasonic Electronic Components ECQ-E2105KFW	250 V			Radial	General Purpose			10 %	1 µF					-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins
Panasonic Electronic Components ECQ-E2105KF3	250 V	5 mm	0.197 "	Radial	General Purpose	0.787 in	20 mm	10 %	1 µF	0.728 in	7.4 mm	0.291 "	18.5 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins
Panasonic Electronic Components ECQ-E2105JF9	250 V	15 mm	0.591 in	Radial	General Purpose			5 %	1 µF	0.728 in	7.4 mm	0.291 "	18.5 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins	0.63 in	16 mm
Panasonic Electronic Components ECQ-E2105RJB	250 V	0.492 in		Radial	General Purpose			5 %	1 µF	0.602 "		0.276 in	15.3 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins	0.748 in	19 mm	12.5 mm	7 mm
Panasonic Electronic Components ECQ-E2105KBB	250 V			Radial	General Purpose			10 %	1 µF					-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins
Panasonic Electronic Components ECQ-E2105JB	250 V	0.492 in		Radial	General Purpose			5 %	1 µF	0.602 "		0.276 in	15.3 mm	-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins	0.591 "	15 mm	12.5 mm	7 mm
Panasonic Electronic Components ECQ-E2105JB3	250 V			Radial	General Purpose			5 %	1 µF					-40 C	105 ░C	Through Hole	Polyester Metallized	PC Pins
