R12342 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

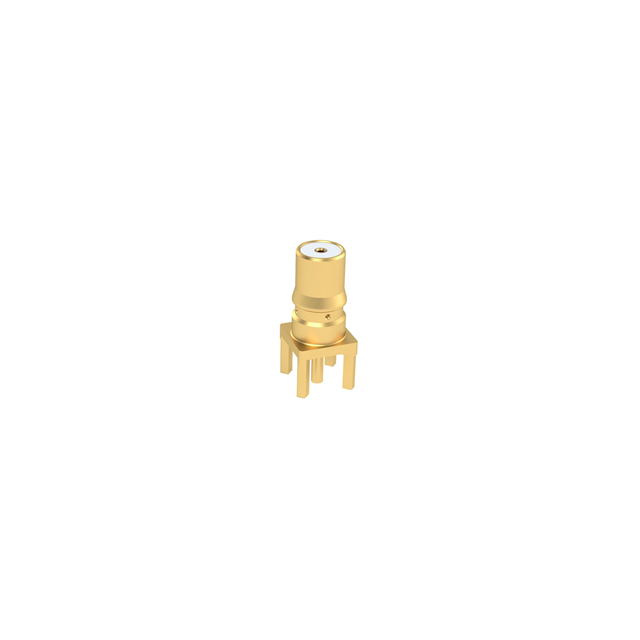

QMA F STR PCB C100
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Finish | Body Material | Voltage Rating | Center Contact Material | Housing Color | Number of Ports | Fastening Type | Shield Termination | Connector Type | Frequency - Max [Max] | Impedance | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -40 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 500 V | Beryllium Copper | Gold | 1 | Snap-On | Solder | Plug Male Pin | 6000 MHz | 50 Ohms | Solder | Through Hole |
 Radiall USA, Inc. | -40 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 500 V | Beryllium Copper | Gold | 1 | Snap-On | Solder | Receptacle Female Socket | 6000 MHz | 50 Ohms | Solder | Through Hole |
