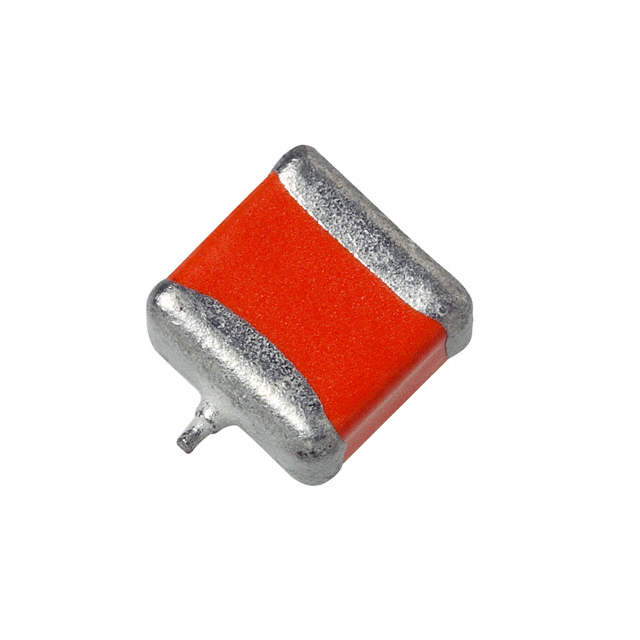

595D Series

Catalog

TANTALUM CAPACITORS - SOLID SMD SOLID TANTALUM TANTAMOUNT, CONFORMAL COATED, MAXIMUM CV

Part	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Height - Seated (Max)	Package / Case	Mounting Type	Size / Dimension Width	Size / Dimension Length	Tolerance	Manufacturer Size Code	Features	Type	ESR (Equivalent Series Resistance)
Vishay Dale 595D336X9025D8T	25 VAC	125 °C	-55 °C	33 µF	0.122 in	2917 (7343 Metric)	Surface Mount	0.169 in	0.295 in	10 %	D	General Purpose	Conformal Coated	270 mOhm
Vishay Dale 595D107X0010B2T	10 V	125 °C	-55 °C	100 µF	0.087 in	1611 (4028 Metric)	Surface Mount	0.11 in	0.157 in	20 %	B	General Purpose	Conformal Coated	400 mOhm
Vishay Dale 595D107X0004B2T	4 V	125 °C	-55 °C	100 µF	0.087 in	1611 (4028 Metric)	Surface Mount	0.11 in	0.157 in	20 %	B	General Purpose	Conformal Coated	450 mOhm
Vishay Dale 595D335X0035C2T	35 V	125 °C	-55 °C	3.3 µF	0.11 in	2812 (7132 Metric)	Surface Mount	0.126 in	0.28 in	20 %	C	General Purpose	Conformal Coated	750 mOhm
Vishay Dale 595D336X9035R2T	35 V	125 °C	-55 °C	33 µF	0.148 in	2824 (7260 Metric)	Surface Mount	0.236 in	0.283 in	10 %	R	General Purpose	Conformal Coated	280 mOhm
Vishay Dale 595D227X06R3G2T	6.3 V	125 °C	-55 °C	220 µF	0.087 in	2214 (5637 Metric)	Surface Mount	0.144 in	0.22 in	20 %	G	General Purpose	Conformal Coated	180 mOhm
Vishay Dale 595D686X0010C2T	10 V	125 °C	-55 °C	68 µF	0.11 in	2812 (7132 Metric)	Surface Mount	0.126 in	0.28 in	20 %	C	General Purpose	Conformal Coated	240 mOhm
Vishay Dale 595D226X0050R8T	50 V	125 °C	-55 °C	22 µF	0.15 in	2824 (7260 Metric)	Surface Mount	0.236 in	0.283 in	20 %	R	General Purpose	Conformal Coated	390 mOhm
Vishay Dale 595D476X9020D8T	20 V	125 °C	-55 °C	47 µF	0.122 in	2917 (7343 Metric)	Surface Mount	0.169 in	0.295 in	10 %	D	General Purpose	Conformal Coated	190 mOhm
Vishay Dale 595D226X0016M8T
