MAX30210 Series

±0.1°C Accurate, Ultra-Small, Low-Power I2C Digital Temperature Sensor

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

±0.1°C Accurate, Ultra-Small, Low-Power I2C Digital Temperature Sensor

Part	Resolution	Features	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Output Type	Accuracy - Highest (Lowest)	Accuracy - Highest (Lowest)	Mounting Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Test Condition [Max]	Test Condition [Min]	Test Condition [Min]	Test Condition [Max]
Analog Devices Inc./Maxim Integrated MAX30210ENL+T	16 b	Standby Mode	0.97	9-WLP	0.97	I2C	0.1 °C	0.15 °C	Surface Mount	Digital	85 °C	-40 C	9-XFBGA WLBGA	85 °C	-40 °F	1.7 V	2 V	85 °C	20 °C	-20 °C	50 °C

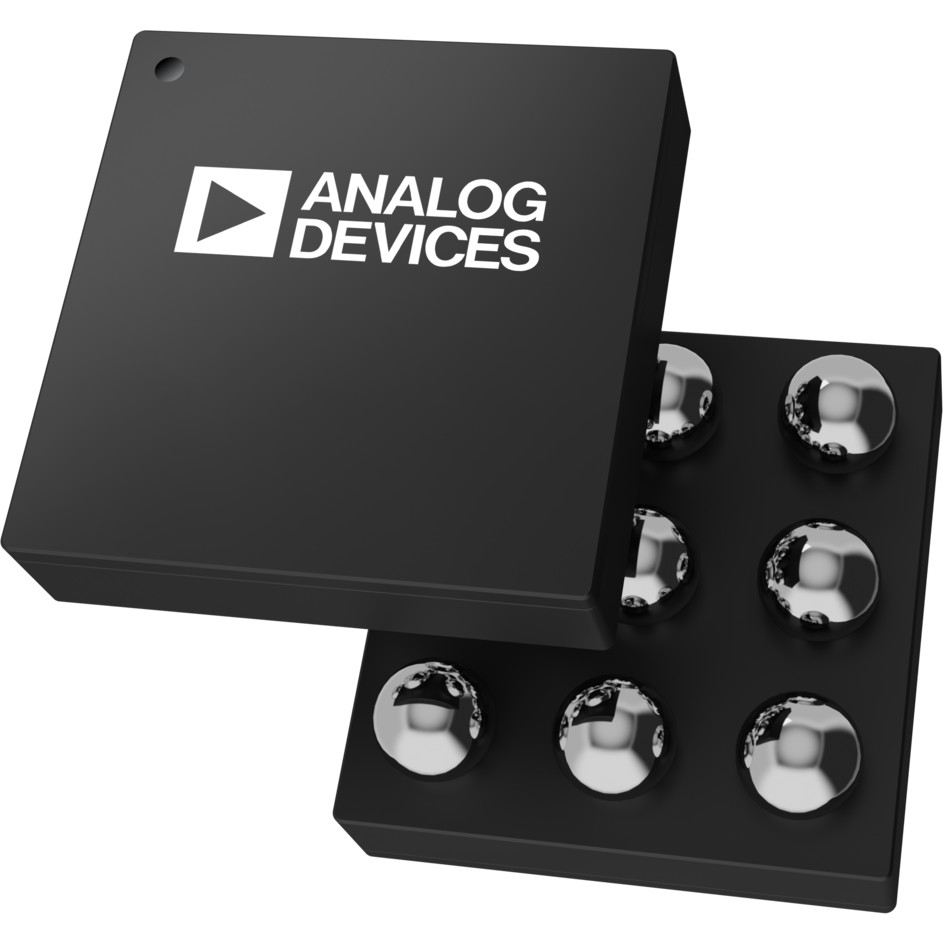

Analog Devices Inc./Maxim Integrated MAX30210ENL+	16 b	Standby Mode	0.97	9-WLP	0.97	I2C	0.1 °C	0.15 °C	Surface Mount	Digital	85 °C	-40 C	9-XFBGA WLBGA	85 °C	-40 °F	1.7 V	2 V	85 °C	20 °C	-20 °C	50 °C

Catalog

±0.1°C Accurate, Ultra-Small, Low-Power I2C Digital Temperature Sensor

Description

The MAX30210 operates from 1.7V to 2.0V supply voltage, and is a low-power, high-accuracy digital temperature sensor with ±0.1°C accuracy from +20°C to +50°C and ±0.15°C accuracy from -20°C to +85°C. The MAX30210 has a 16-bit resolution (0.005°C).The device uses a standard I2C serial interface to communicate with a host controller. There are four functional I/Os. Those functions include a dedicated interrupt pin, a shared external convert and power-down functional pin, and two target address select pins.The MAX30210 includes a 64-word FIFO for the temperature data and also includes high and low threshold digital temperature alarms along with FIFO full alert. The device is available in a 0.968mm x 0.968mm x 0.5mm, 9-pin WLP package.APPLICATIONSWearable Devices for Fitness, Wellness, and Medical ApplicationsMedical ThermometersHearing AidsSmart Clothing
