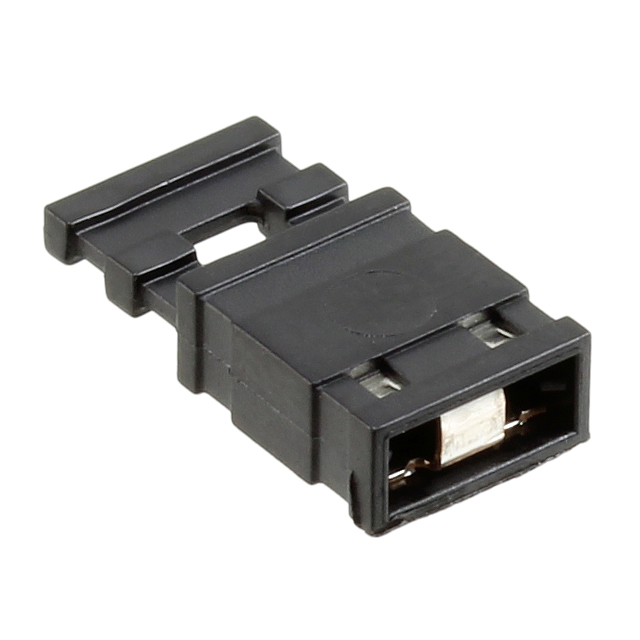

M7686 Series
Manufacturer: Harwin Inc.
Beta
⌘K
JUMPER (BUSBAR), JUMPER SOCKET, M20 CONNECTORS, 2, 2.54 MM ROHS COMPLIANT: YES
| Part | Pitch | Pitch | Color | Height [z] | Height [z] | Current Rating (Amps) | Voltage Rating | Type | Contact Finish | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Material Flammability Rating | Gender | Housing Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.1 " | 2.54 mm | Black | 10 mm | 0.394 in | 3 A | 250 V | Closed Top Grip | Gold | 1 x 2 | 2 | UL94 V-0 | Female Sockets | Polyester | 5.11 µin | 0.13 µm |
