ADS1202 Series

Current-shunt delta-sigma modulator, 10MHz CLK, +/-250mV input, 16-bit resolution

Catalog

Current-shunt delta-sigma modulator, 10MHz CLK, +/-250mV input, 16-bit resolution

Part	Supplied Contents	Utilized IC / Part	Input Range	Sampling Rate (Per Second)	Number of A/D Converters	Data Interface	Power (Typ) @ Conditions	Number of Bits	Mounting Type	Number of Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Resolution (Bits)	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case [custom]	Voltage Supply Source	Operating Temperature [Max]	Operating Temperature [Min]

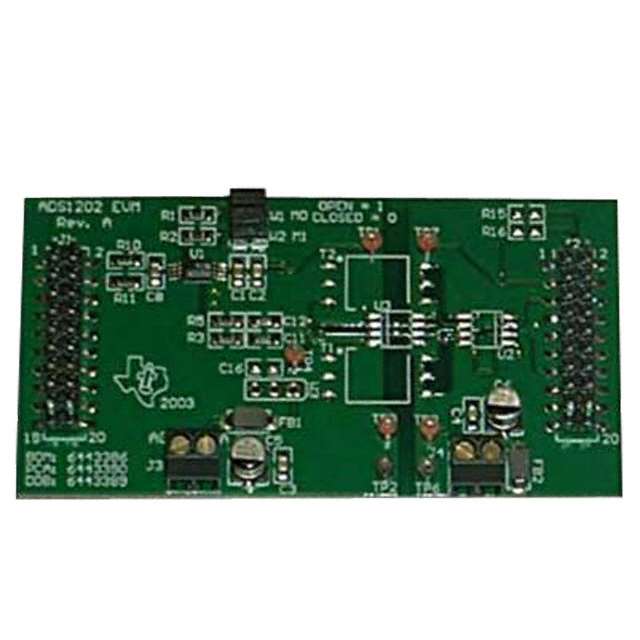

Texas Instruments ADS1202EVM	Board(s)	ADS1202	320 mV	40k	1	Serial	40 mW	16
Texas Instruments ADS1202IPWRG4				40k		Serial			Surface Mount	1	4.75 V	5.25 V	Modulator	16 b	8-TSSOP	8-TSSOP	0.173 "	4.4 mm	Single Supply	85 °C	-40 °C
Texas Instruments ADS1202IPWR				40k		Serial			Surface Mount	1	4.75 V	5.25 V	Modulator	16 b	8-TSSOP	8-TSSOP	0.173 "	4.4 mm	Single Supply	85 °C	-40 °C
Texas Instruments ADS1202IPWT				40k		Serial			Surface Mount	1	4.75 V	5.25 V	Modulator	16 b	8-TSSOP	8-TSSOP	0.173 "	4.4 mm	Single Supply	85 °C	-40 °C

Catalog

Current-shunt delta-sigma modulator, 10MHz CLK, +/-250mV input, 16-bit resolution

Key Features

• 16-BIT RESOLUTION13-BIT LINEARITYRESOLUTION/SPEED TRADE-OFF:10-Bit Effective Resolution with 20 µs SignalDelay (12-bit with 77 µs)±250mV INPUT RANGE WITH SINGLE 5V SUPPLY2% INTERNAL REFERENCE VOLTAGE2% GAIN ERRORFLEXIBLE SERIAL INTERFACE WITH FOUR DIFFERENT MODESIMPLEMENTED TWINNED BINARY CODING AS SPLIT PHASE OR MANCHESTER CODING FOR ONE LINE INTERFACINGOPERATING TEMPERATURE RANGE:–40°C to +85°CAPPLICATIONSMOTOR CONTROLCURRENT MEASUREMENTINDUSTRIAL PROCESS CONTROLINSTRUMENTATIONSMART TRANSMITTERSPORTABLE INSTRUMENTSWEIGHT SCALESPRESSURE TRANSDUCERS16-BIT RESOLUTION13-BIT LINEARITYRESOLUTION/SPEED TRADE-OFF:10-Bit Effective Resolution with 20 µs SignalDelay (12-bit with 77 µs)±250mV INPUT RANGE WITH SINGLE 5V SUPPLY2% INTERNAL REFERENCE VOLTAGE2% GAIN ERRORFLEXIBLE SERIAL INTERFACE WITH FOUR DIFFERENT MODESIMPLEMENTED TWINNED BINARY CODING AS SPLIT PHASE OR MANCHESTER CODING FOR ONE LINE INTERFACINGOPERATING TEMPERATURE RANGE:–40°C to +85°CAPPLICATIONSMOTOR CONTROLCURRENT MEASUREMENTINDUSTRIAL PROCESS CONTROLINSTRUMENTATIONSMART TRANSMITTERSPORTABLE INSTRUMENTSWEIGHT SCALESPRESSURE TRANSDUCERS

Description

The ADS1202 is a precision, 80dB dynamic range, delta-sigma () modulator operating from a single +5V supply. The differential inputs are ideal for direct connections to transducers or low-level signals. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit Analog-to-Digital (A/D) conversion with no missing codes. Effective resolution of 12 bits can be maintained with a digital filter bandwidth of 10kHz at a modulator rate of 10MHz. The ADS1202 is designed for use in medium resolution measurement applications including current measurements, smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation. It is available in a TSSOP-8 package. The ADS1202 is a precision, 80dB dynamic range, delta-sigma () modulator operating from a single +5V supply. The differential inputs are ideal for direct connections to transducers or low-level signals. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit Analog-to-Digital (A/D) conversion with no missing codes. Effective resolution of 12 bits can be maintained with a digital filter bandwidth of 10kHz at a modulator rate of 10MHz. The ADS1202 is designed for use in medium resolution measurement applications including current measurements, smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation. It is available in a TSSOP-8 package.
