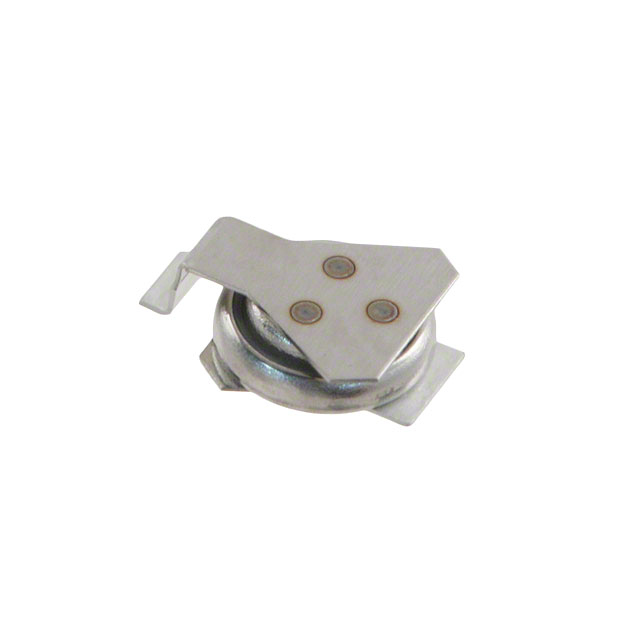

EEC-EP Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP 33MF -20% +80% 2.6V SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Tolerance [Max] | Tolerance [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) | ESR (Equivalent Series Resistance) | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Lifetime @ Temp. | Capacitance | Package / Case | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | -10 °C | 60 °C | SMD (SMT) Tabs | 80 % | -20 % | 0.059 " | 1.5 mm | 350 Ohm | Surface Mount | 3.8 mm | 0.15 " | 500 Hrs | 33000 µF | Coin Wide and Thin Terminals - Opposite Sides | |
Panasonic Electronic Components | -10 °C | 60 °C | SMD (SMT) Tabs | 80 % | -20 % | 0.061 in | 1.55 mm | 350 Ohm | Surface Mount | 3.8 mm | 0.15 " | 250 Hrs | 33000 µF | Coin Wide and Thin Terminals - Opposite Sides | 3.3 VDC |
Panasonic Electronic Components | -10 °C | 60 °C | SMD (SMT) Tabs | 80 % | -20 % | 0.059 " | 1.5 mm | 350 Ohm | Surface Mount | 3.8 mm | 0.15 " | 250 Hrs | 33000 µF | Coin Wide and Thin Terminals - Opposite Sides | 3.3 VDC |
