2102094 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

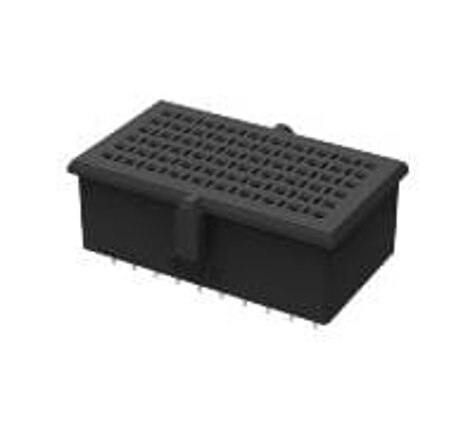

HIGH SPEED / MODULAR CONNECTORS FORTIS ZD 2PR 10COL VERT FULL MOD ASSY
| Part | Current Rating (Amps) | Material Flammability Rating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Type | Termination | Number of Columns | Connector Usage | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Mounting Type | Number of Positions Loaded | Number of Rows | Contact Finish | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.5 A | UL94 V-0 | 250 V | -65 ░C | 125 °C | Black | Receptacle Female Sockets | Press-Fit | 10 | Backplane Motherboard | 20 | 40 | Through Hole | All | 6 | Gold | 0.075 in | 1.91 mm | 50 µin | 1.27 µm | 60 |
