ASQ106 Series

Catalog

MICROSWITCH, TURQUOISE STROKE, ASQ1 SERIES, SPDT, PIN PLUNGER, WIRE LEADED, 100 MA ROHS COMPLIANT: YES

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Mounting Type	Ingress Protection	Circuit	Switch Function	Operating Force	Overtravel [custom]	Overtravel [custom]	Operating Position [x]	Operating Position [x]
Panasonic Electronic Components ASQ10610	200000 Cycles	85 °C	-40 C	0.33 in	8.4 mm	Round (Pin Plunger)	30 V	100 mA	Wire Leads	Chassis Mount	IP67 - Dust Tight Waterproof	SPDT	On-Mom	153 gf	0.087 "	2.2 mm

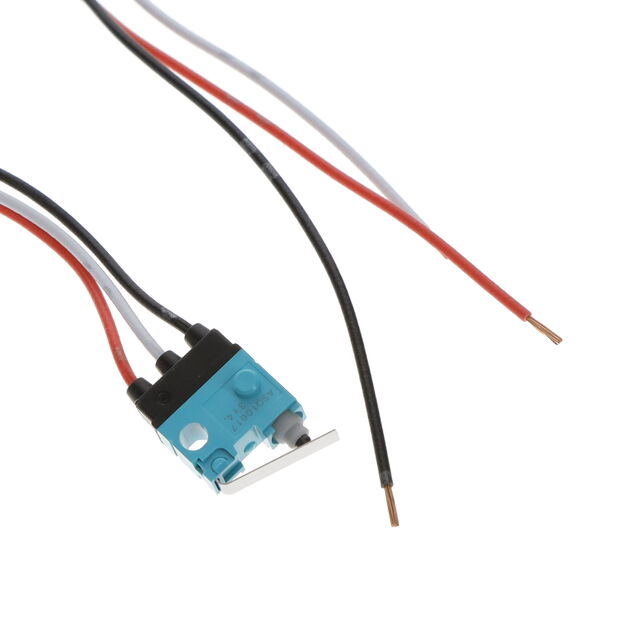

Panasonic Electronic Components ASQ10617	200000 Cycles	85 °C	-40 C			Lever Straight	30 V	100 mA	Wire Leads	Chassis Mount	IP67 - Dust Tight Waterproof	SPDT	On-Mom	173 gf	0.102 "	2.6 mm	9.3 mm	0.366 in
Panasonic Electronic Components ASQ10627	200000 Cycles	85 °C	-40 C			Lever Straight	30 V	100 mA	Wire Leads	Chassis Mount	IP67 - Dust Tight Waterproof	SPST-NC	On-Mom	173 gf	0.102 "	2.6 mm	9.3 mm	0.366 in
Panasonic Electronic Components ASQ10620	200000 Cycles	85 °C	-40 C	0.33 in	8.4 mm	Round (Pin Plunger)	30 V	100 mA	Wire Leads	Chassis Mount	IP67 - Dust Tight Waterproof	SPST-NC	On-Mom	153 gf	0.087 "	2.2 mm
Panasonic Electronic Components ASQ10628	200000 Cycles	85 °C	-40 C	0.472 in	12 mm	Lever Simulated Roller	30 V	100 mA	Wire Leads	Chassis Mount	IP67 - Dust Tight Waterproof	SPST-NC	On-Mom	153 gf	0.11 "	2.8 mm
