4282-1 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER R/A 18POS DUAL 94V-0

Part	Fastening Type	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Material Flammability Rating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Color	Number of Positions	Number of Rows [custom]	Style	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
CNC Tech 4282-1-0200-18-SP	Locking Ramp	9 A	Right Angle Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder	0.138 in	3.5 mm	10 mm	0.394 "	Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	White	18	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass
CNC Tech 4282-1-0200-20-SP	Locking Ramp	9 A	Right Angle Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder	0.138 in	3.5 mm	10 mm	0.394 "	Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	White	20	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass
CNC Tech 4282-1-0200-22-SP	Locking Ramp	9 A	Right Angle Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder	0.138 in	3.5 mm	10 mm	0.394 "	Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	White	22	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass

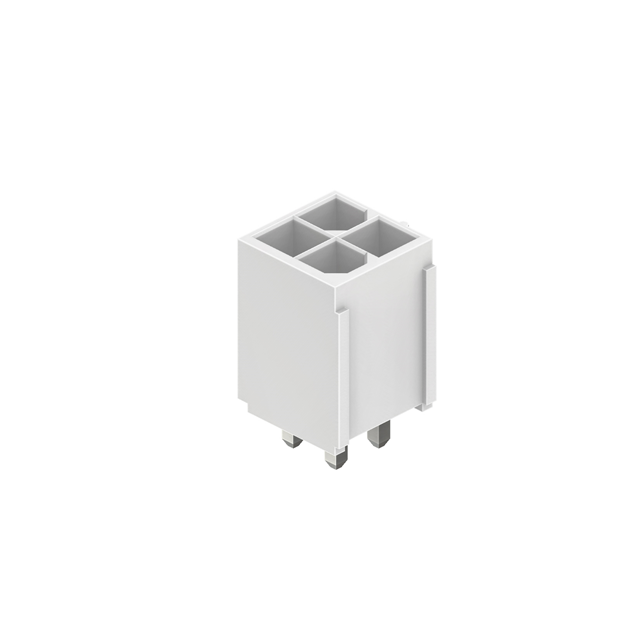

CNC Tech 4282-1-0100-04-SP	Locking Ramp	9 A	Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder		4 mm			Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header		4	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass	0.157 in	12.8 mm	0.504 "

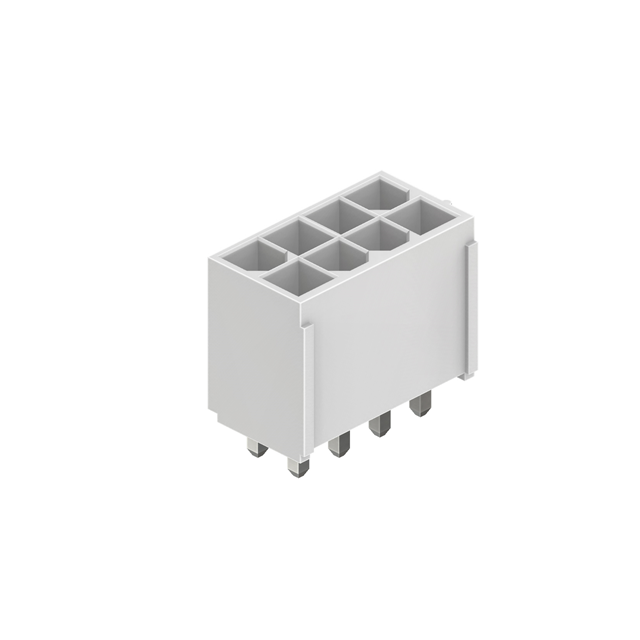

CNC Tech 4282-1-0100-08-SP	Locking Ramp	9 A	Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder		4 mm			Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header		8	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass	0.157 in	12.8 mm	0.504 "

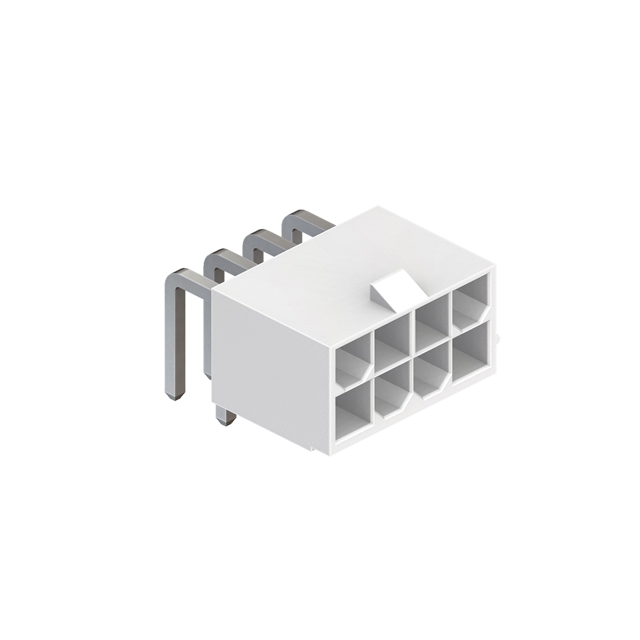

CNC Tech 4282-1-0200-08-SP	Locking Ramp	9 A	Right Angle Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder	0.138 in	3.5 mm	10 mm	0.394 "	Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	White	8	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass

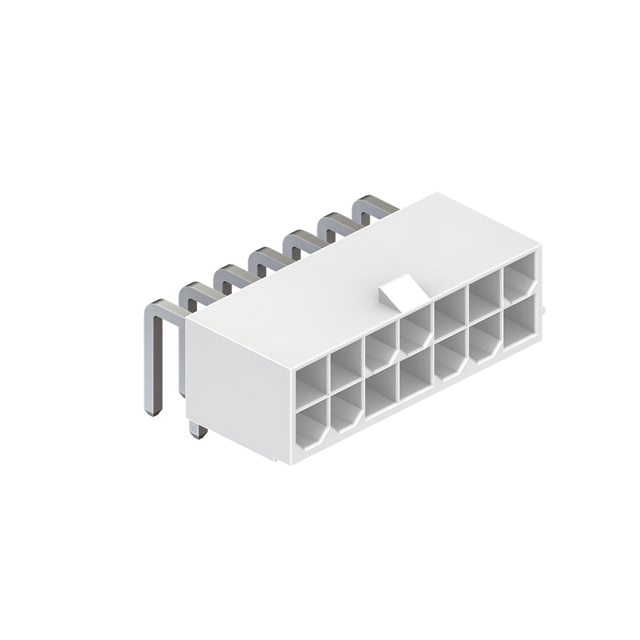

CNC Tech 4282-1-0200-14-SP	Locking Ramp	9 A	Right Angle Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder	0.138 in	3.5 mm	10 mm	0.394 "	Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header	White	14	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass
CNC Tech 4282-1-0100-12-SP	Locking Ramp	9 A	Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder		4 mm			Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header		12	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass	0.157 in	12.8 mm	0.504 "

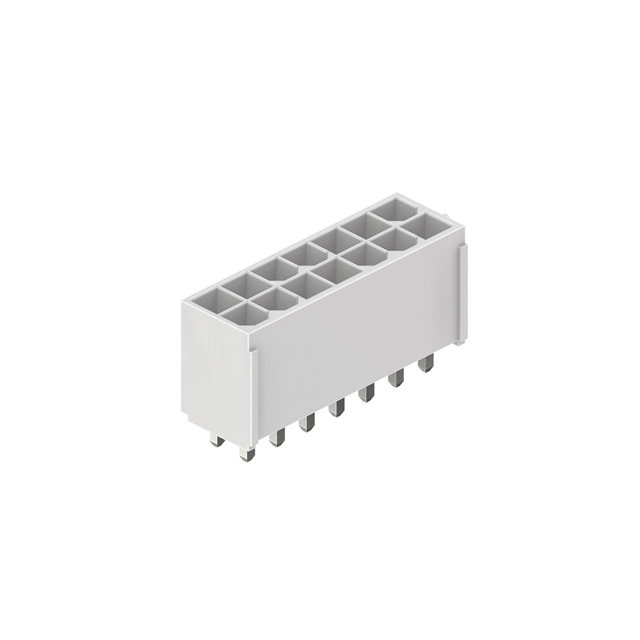

CNC Tech 4282-1-0100-14-SP	Locking Ramp	9 A	Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder		4 mm			Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header		14	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass	0.157 in	12.8 mm	0.504 "

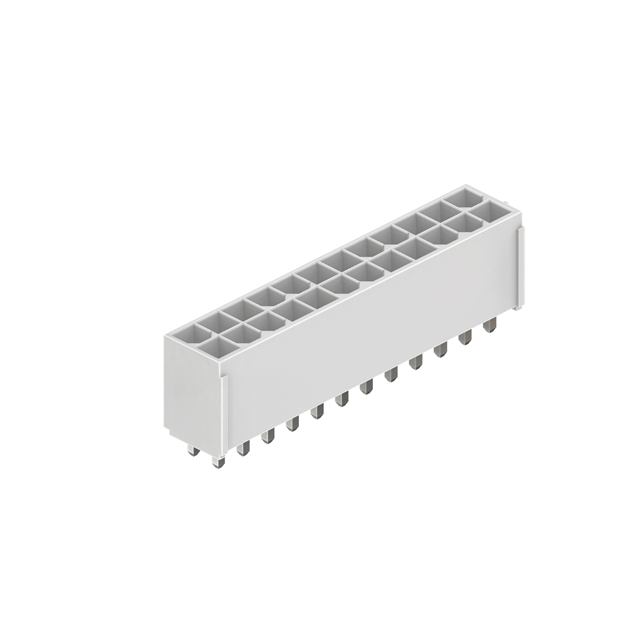

CNC Tech 4282-1-0100-24-SP	Locking Ramp	9 A	Through Hole	All	600 VAC	0.165 in	4.2 mm	Male Pin	Solder		4 mm			Tin	Square	UL94 V-0	Shrouded - 4 Wall	0.165 in	4.2 mm	Header		24	2	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	Brass	0.157 in	12.8 mm	0.504 "
