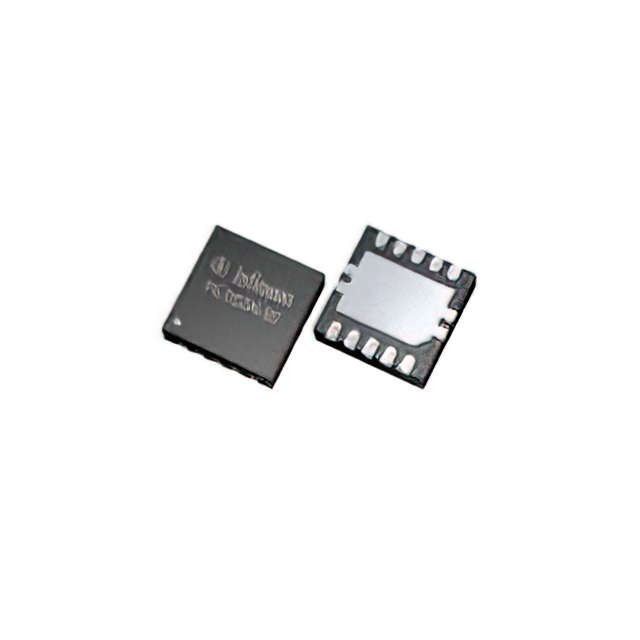

2ED2772 Series
Manufacturer: INFINEON
Beta
⌘K
IC GATE DRVR HALF-BRIDGE VSON-10
| Part | Gate Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Driven Configuration | Input Type | Number of Drivers | Channel Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Logic Voltage - VIL, VIH | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | MOSFET (N-Channel) N-Channel MOSFET | 7 V | 18 V | 10-VFDFN Exposed Pad | Half-Bridge | Non-Inverting | 2 | Independent | 2 A | 1 A | 125 °C | -40 °C | 0.8 V 2 V | 12 ns | 24 ns | Surface Mount |
