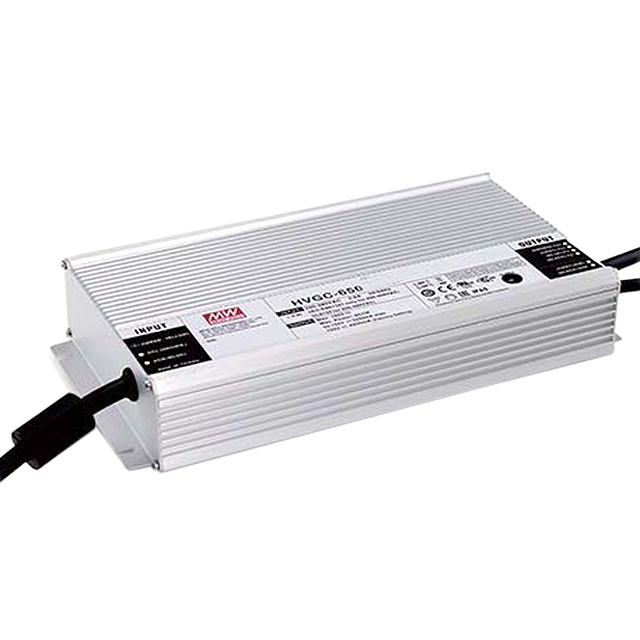

HVGC-650 Series

Catalog

LED DRVR CP AC/DC 70V 11.2A

Part	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Ratings	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Topology	Voltage - Isolation	Approval Agency	Dimming	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
MEAN WELL USA Inc. HVGC-650-U-AB	Chassis Mount	Constant Power	11.2 A	180 VAC	784 W	IP67	528 VAC	95.5 %	70 V	Wire Leads	90 °C	-40 C	OTP OVP SCP	AC DC Converter	4.2 kV	CB CE cURus EAC ENEC FCC	Analog PWM	1	144 mm	48.5 mm	253.2 mm	9.97 "	1.91 in	5.67 in
MEAN WELL USA Inc. HVGC-650-H-AB	Chassis Mount	Constant Power	5.6 A	180 VAC		IP67	528 VAC	95 %		Wire Leads	90 °C	-40 C	OTP OVP SCP	AC DC Converter	4.2 kV	CB CE cURus EAC ENEC FCC	Analog PWM	1	144 mm	48.5 mm	253.2 mm	9.97 "	1.91 in	5.67 in
MEAN WELL USA Inc. HVGC-650-M-AB	Chassis Mount	Constant Power	4.2 A	180 VAC		IP67	528 VAC	95 %	160 V	Wire Leads	90 °C	-40 C	OTP OVP SCP	AC DC Converter	4.2 kV	CB CE cURus EAC ENEC FCC	Analog PWM	1	144 mm	48.5 mm	253.2 mm	9.97 "	1.91 in	5.67 in
MEAN WELL USA Inc. HVGC-650-L-AB	Chassis Mount	Constant Power	2.8 A	180 VAC		IP67	528 VAC	95 %	240 V	Wire Leads	90 °C	-40 C	OTP OVP SCP	AC DC Converter	4.2 kV	CB CE cURus EAC ENEC FCC	Analog PWM	1	144 mm	48.5 mm	253.2 mm	9.97 "	1.91 in	5.67 in
