957 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT STRAIGHT

Part	Fastening Type	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Features	Number of Rows [custom]	Insulation Material	Material Flammability Rating	Insulation Color	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Insulation Height	Insulation Height	Contact Finish - Post	Mounting Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 957210-2000-AR-TP	Push-Pull	Shrouded - 4 Wall	All	0.079 "	2 mm	Keying Slot	2	Thermoplastic	UL94 V-0	Black	Square	-40 C	105 ░C	Solder	Flash	Male Pin	Gold	2 mm	0.079 in	10	Header	5.6 mm	0.22 in	Tin	Surface Mount	Copper Alloy
3M Electronic Specialty 957250-5002-AR	Push-Pull	Shrouded - 4 Wall	All	0.079 "	2 mm	Keying Slot	2	Thermoplastic	UL94 V-0	Black	Square	-40 C	105 ░C	Solder	Flash	Male Pin	Gold	2 mm	0.079 in	50	Header	5.51 mm	0.217 in	Tin	Right Angle Through Hole	Copper Alloy	39.4 çin	1 çm	0.118 in	3 mm
3M Electronic Specialty 957240-6002-AR	Push-Pull	Shrouded - 4 Wall	All	0.079 "	2 mm	Keying Slot	2	Thermoplastic	UL94 V-0	Black	Square	-40 C	105 ░C	Solder	Flash	Male Pin	Gold	2 mm	0.079 in	40	Header	5.6 mm	0.22 in	Tin	Through Hole	Copper Alloy	39.4 çin	1 çm	0.118 in	3 mm

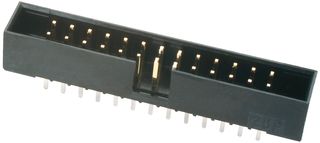

3M Electronic Specialty 957220-6002-AR	Push-Pull	Shrouded - 4 Wall	All	0.079 "	2 mm	Keying Slot	2	Thermoplastic	UL94 V-0	Black	Square	-40 C	105 ░C	Solder	Flash	Male Pin	Gold	2 mm	0.079 in	20	Header	5.6 mm	0.22 in	Tin	Through Hole	Copper Alloy			0.118 in	3 mm
