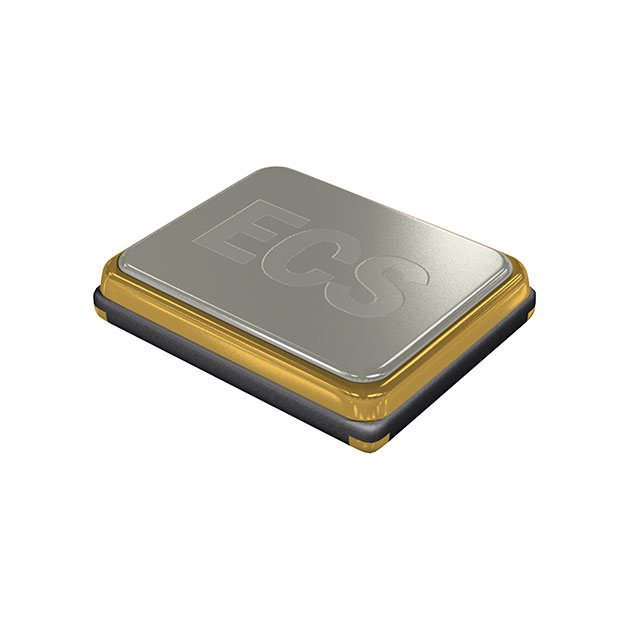

ECX-36Q Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 20MHZ 25PPM 8PF -40C +125C

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency Tolerance	ESR (Equivalent Series Resistance)	Ratings	Type	Operating Mode	Package / Case	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency Tolerance
ECS Inc. ECS-200-8-36Q-AES-TR	2.5 mm	0.079 in	0.098 in	2 mm	2	2.5	4-SMD	25 ppm	60 Ohms	AEC-Q200	MHz Crystal	Fundamental	4-SMD No Lead	50 ppm	0.6 mm	0.024 in	20 MHz	8 pF	125 °C	-40 C	Surface Mount
ECS Inc. ECS-250-10-36Q-ES-TR	2.5 mm	0.079 in	0.098 in	2 mm	2	2.5	4-SMD	30 ppm	60 Ohms	AEC-Q200	MHz Crystal	Fundamental	4-SMD No Lead	50 ppm	0.6 mm	0.024 in	25 MHz	10 pF	125 °C	-40 C	Surface Mount
ECS Inc. ECS-200-10-36Q-ES-TR	2.5 mm	0.079 in	0.098 in	2 mm	2	2.5	4-SMD	30 ppm	60 Ohms	AEC-Q200	MHz Crystal	Fundamental	4-SMD No Lead	50 ppm	0.6 mm	0.024 in	20 MHz	10 pF	125 °C	-40 C	Surface Mount	Ý30ppm
