TMB-V8 Series

Catalog

1.85(F)STR,VL,MIXED-TECH,SOLDER

Part	Impedance	Contact Termination	Center Contact Material	Connector Type	Fastening Type	Housing Color	Connector Style	Frequency - Max [Max]	Number of Ports	Mounting Type	Shield Termination	Body Finish	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Plating	Body Material	Insertion Loss	Mounting Feature	Features

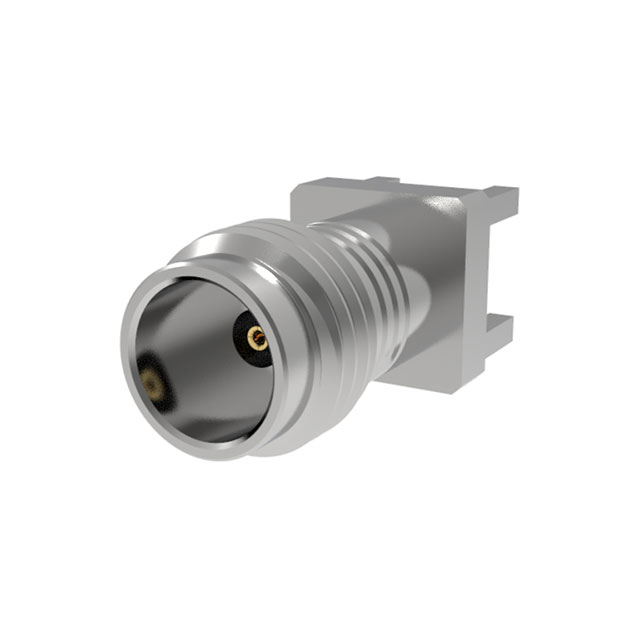

Amphenol CDI TMB-V8FS-3SM	50 Ohms	Solder	Beryllium Copper	Female Socket Jack	Threaded	Gold	1.85 mm	65 GHz	1	Through Hole	Solder
Amphenol CDI TMB-V8FS-3SM	50 Ohms	Solder	Beryllium Copper	Female Socket Jack	Threaded	Gold	1.85 mm	65 GHz	1	Through Hole	Solder	Gold	500	-65 ░C	165 °C	400 V	Gold	Brass	0.6 dB
Amphenol CDI TMB-V8F2-3LC		Compression		Female Socket Jack	Threaded	Silver	1.85 mm	67 GHz	1	Surface Mount	Screw	Nickel								Flange
Amphenol CDI TMB-V8F2-3LC		Compression		Female Socket Jack	Threaded	Silver	1.85 mm	67 GHz	1	Surface Mount	Screw									Flange

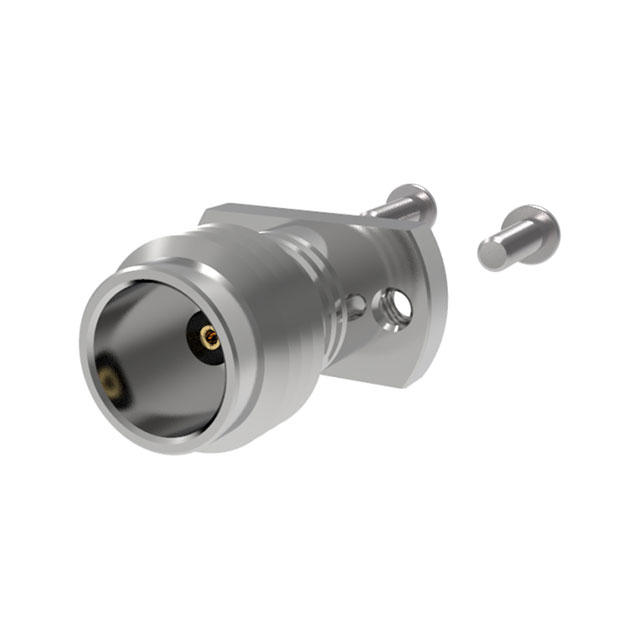

Amphenol CDI TMB-V8F2-3L1	50 Ohms	Compression	Beryllium Copper	Female Socket Jack	Threaded	Silver	1.85 mm	65 GHz	1	Surface Mount	Screw		500	-55 C	85 °C	500 V	Gold	Stainless Steel	0.2 dB	Flange	Field Replaceable For Hermetically Sealed Pin
Amphenol CDI TMB-V8F2-3L1	50 Ohms	Compression	Beryllium Copper	Female Socket Jack	Threaded	Silver	1.85 mm	65 GHz	1	Surface Mount	Screw									Flange	Field Replaceable For Hermetically Sealed Pin
