CXC3106A Series

Catalog

CONN PLUG MALE 4POS SILVER CRIMP

Part	Contact Finish - Mating	Shell Size - Insert	Contact Material	Fastening Type	Number of Positions	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Voltage Rating	Features	Mounting Type	Applications	Backshell Material, Plating	Shielding	Color	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]
SWITCHCRAFT/CONXALL CXC3106A184P	Silver	18-4	Brass	Threaded	4	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
SWITCHCRAFT/CONXALL CXC3106A16S8P	Silver	16S-8	Brass	Threaded	5	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
SWITCHCRAFT/CONXALL CXC3106A14S2S	Silver	14S-2	Brass	Threaded	4	Keyed	125 °C	-40 C	Crimp	Plug Female Sockets	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic

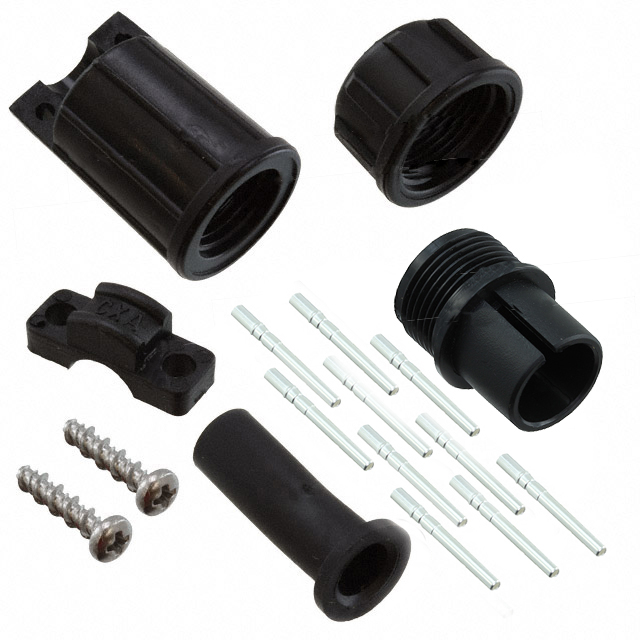

SWITCHCRAFT/CONXALL CXC3106A1819S	Silver		Brass	Threaded	10	Keyed	125 °C	-40 C	Crimp	Plug Female Sockets	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic	19	18
SWITCHCRAFT/CONXALL CXC3106A2016S	Silver		Brass	Threaded	9	Keyed	125 °C	-40 C	Crimp	Plug Female Sockets	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic	16	20
SWITCHCRAFT/CONXALL CXC3106A2027S	Silver		Brass	Threaded	14	Keyed	125 °C	-40 C	Crimp	Plug Female Sockets	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic	27	20
SWITCHCRAFT/CONXALL CXC3106A188P	Silver	18-8	Brass	Threaded	8	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
SWITCHCRAFT/CONXALL CXC3106A242P	Silver	24-2	Brass	Threaded	7	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
SWITCHCRAFT/CONXALL CXC3106A207P	Silver	20-7	Brass	Threaded	8	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
SWITCHCRAFT/CONXALL CXC3106A2214P	Silver	22-14	Brass	Threaded	19	Keyed	125 °C	-40 C	Crimp	Plug Male Pins	500 V	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Lighting	Nylon Polyamide (PA)	Unshielded	Black	Plastic
