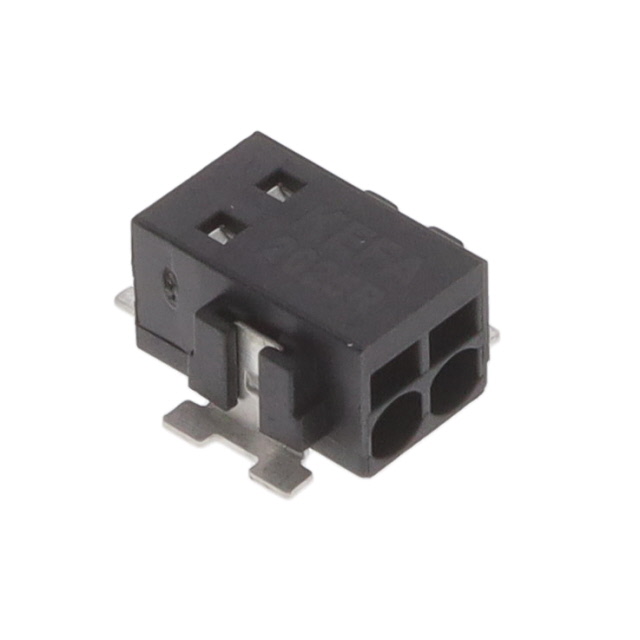

EB176-A Series
Manufacturer: Adam Tech
Beta
⌘K
EUROBLOCK 2POS
| Part | Contact Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Number of Levels | Pitch | Pitch | Voltage | Color | Wire Gauge [Max] | Wire Gauge [Min] | Current | Wire Termination | Positions Per Level | Mating Orientation | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Tin | 105 ░C | -65 ░C | Glass Filled Nylon Polyamide (PA) | 1 | 2.5 mm | 0.098 in | 150 V | Black | 24 AWG | 19.5 AWG | 6 A | Leg Spring Push-In Spring | 2 | Horizontal with Board | Solder Retention | Surface Mount |
