KX15-20K Series

Catalog

CONN PLUG 20POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch	Pitch	Number of Rows [custom]	Number of Positions
JAE Electronics KX15-20K2D-E1000E	0.148 in	3.75 mm	Gold	Board Guide Solder Retention	4 mm 7 mm 10 mm 13 mm 16 mm	0.1 Ám	4 Áin	Surface Mount	0.8 mm	0.031 in	2	20

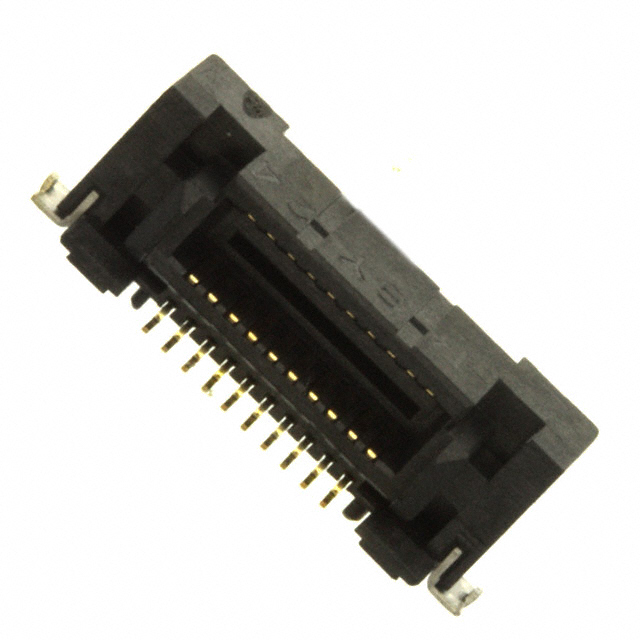

JAE Electronics KX15-20KLDLE	0.226 "	5.74 mm	Gold	Board Guide Solder Retention		0.1 Ám	4 Áin	Right Angle Surface Mount	0.8 mm	0.031 in	2	20

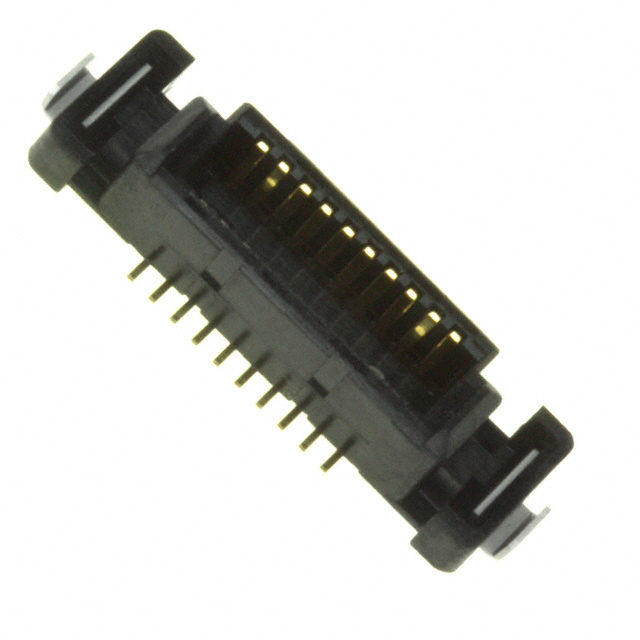

JAE Electronics KX15-20K2DE	0.148 in	3.75 mm	Gold	Board Guide Solder Retention	4 mm 7 mm 10 mm 13 mm 16 mm	0.1 Ám	4 Áin	Surface Mount	0.8 mm	0.031 in	2	20
JAE Electronics KX15-20KLDL-E1000E	0.226 "	5.74 mm	Gold	Board Guide Solder Retention		0.1 Ám	4 Áin	Right Angle Surface Mount	0.8 mm	0.031 in	2	20
JAE Electronics KX15-20K4D-E1000E	0.226 "	5.74 mm	Gold	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	0.1 Ám	4 Áin	Surface Mount	0.8 mm	0.031 in	2	20

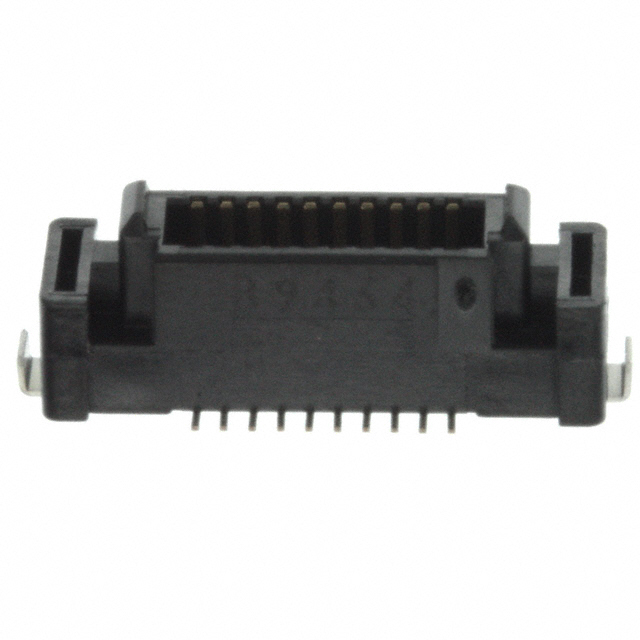

JAE Electronics KX15-20K4DE	0.226 "	5.74 mm	Gold	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	0.1 Ám	4 Áin	Surface Mount	0.8 mm	0.031 in	2	20
