3020-20 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN HEADER VERT 20POS 2.54MM
| Part | Contact Finish Thickness - Post | Insulation Color | Contact Length - Post | Contact Length - Post | Connector Type | Number of Positions | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Features | Contact Finish - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions Loaded | Mounting Type | Insulation Material | Contact Type | Voltage Rating | Material Flammability Rating | Contact Material | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Contact Shape | Style | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

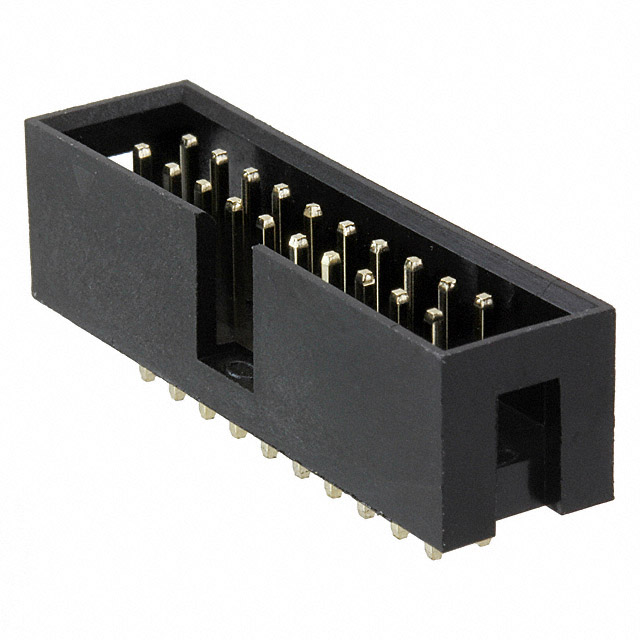

 CNC Tech | Flash | Black | 0.118 in | 3 mm | Header | 20 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | Keying Slot | Gold | Gold | 0.1 " | 2.54 mm | 0.354 in | 9 mm | 3 A | All | Through Hole | Nylon 9T Polyamide (PA9T) | Male Pin | 250 VAC | UL94 V-0 | Brass | Flash | -40 C | 105 ░C | 2 | Square | Board to Cable/Wire | Push-Pull | |||||

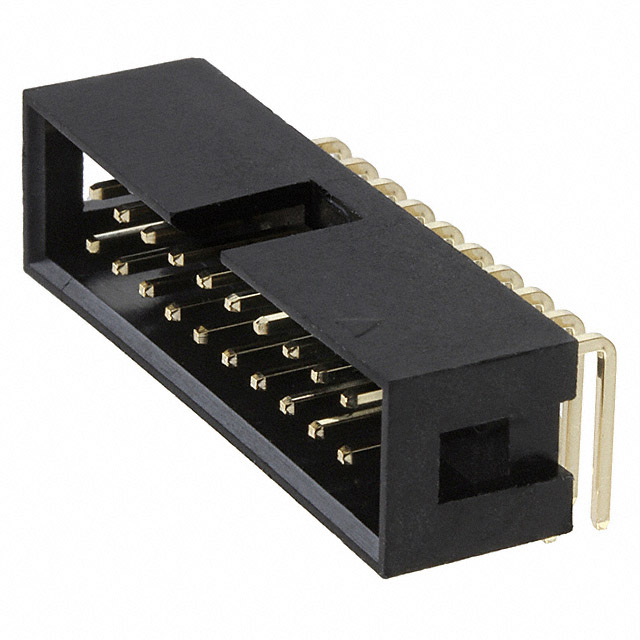

 CNC Tech | Flash | Black | 0.118 in | 3 mm | Header | 20 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | Keying Slot | Gold | Gold | 0.1 " | 2.54 mm | 3 A | All | Right Angle Through Hole | Nylon 9T Polyamide (PA9T) | Male Pin | 250 VAC | UL94 V-0 | Brass | Flash | -40 C | 105 ░C | 2 | Square | Board to Cable/Wire | Push-Pull | 8.8 mm | 0.346 in | |||||

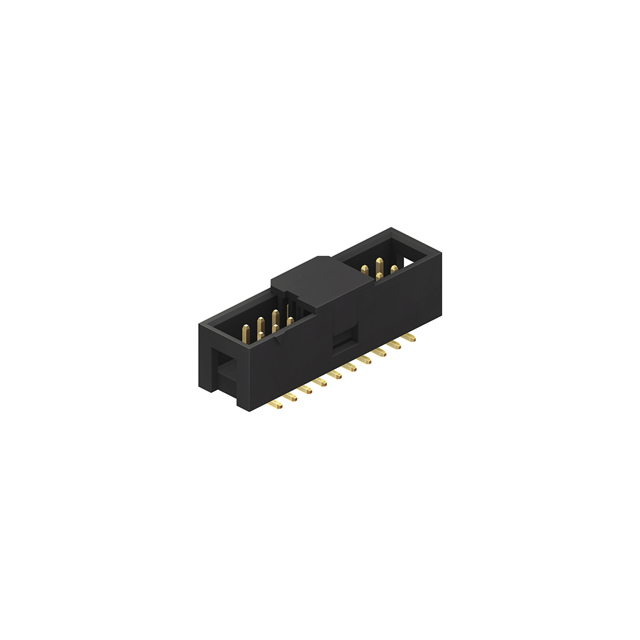

 CNC Tech | Flash | Black | Header | 20 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | Keying Slot | Gold | Gold | 0.1 " | 2.54 mm | 0.354 in | 9 mm | 3 A | All | Surface Mount | Nylon 9T Polyamide (PA9T) | Male Pin | UL94 V-0 | Brass | Flash | -40 C | 105 ░C | 2 | Square | Board to Cable/Wire | Push-Pull | ||||||||
 CNC Tech | Flash | Black | Header | 20 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | Keying Slot Pick and Place | Gold | Gold | 0.1 " | 2.54 mm | 0.354 in | 9 mm | 3 A | All | Surface Mount | Nylon 9T Polyamide (PA9T) | Male Pin | UL94 V-0 | Copper Alloy | Flash | -40 C | 105 ░C | 2 | Square | Board to Cable/Wire | Push-Pull | ||||||||
 CNC Tech | 0.118 in | 3 mm | Header | 20 | Shrouded - 4 Wall | 0.1 in | 2.54 mm | Solder | Gold | 0.1 " | 2.54 mm | 0.35 in | 3 A | All | Right Angle Through Hole | Nylon 6T Polyamide (PA6T) | Male Pin | UL94 V-0 | Brass | -40 C | 105 ░C | 2 | Square | Board to Cable/Wire | Push-Pull | 0.76 Ám | 30 Áin | 8.89 mm |
