SC Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKES / FILTERS 1.7MH 250V 8A DCR=0.02OHMS
| Part | Inductance @ Frequency | Voltage Rating - DC | DC Resistance (DCR) (Max) [Max] | Voltage Rating - AC | Package / Case | Filter Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Lines | Size / Dimension | Size / Dimension [diameter] | Height (Max) | Height (Max) [Max] [z] | Current Rating (Max) [Max] | Size / Dimension [diameter] | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

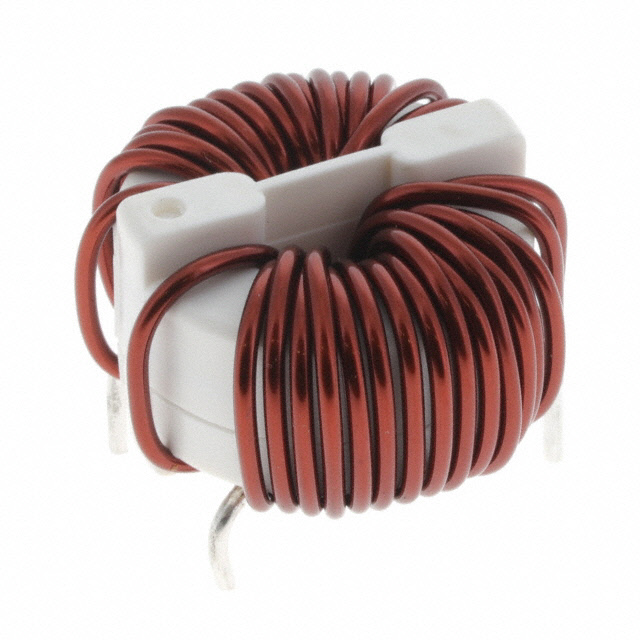

 KEMET | 1.7 mH 10 kHz | 250 V | 20 mOhm | 250 V | 4 PC Pin Horizontal No Base | Power Line | 120 °C | -40 C | Through Hole | 2 | 30 mm | 1.181 " | 19 mm | 0.748 in | 8 A | ||

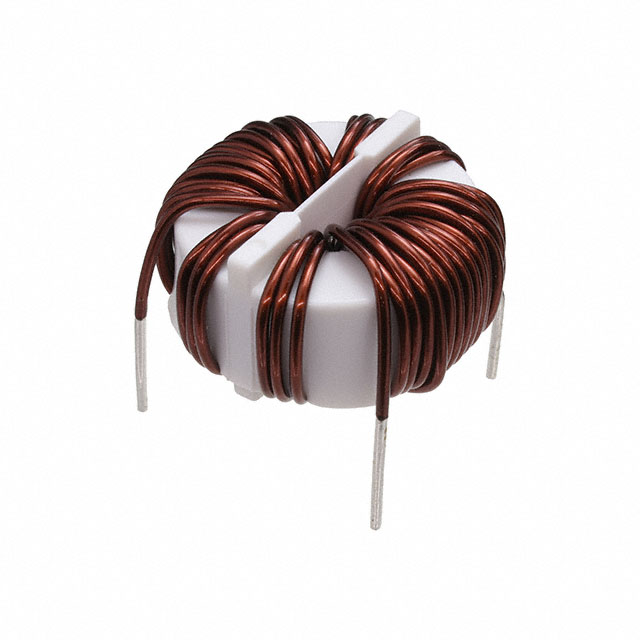

 KEMET | 3 mH | 250 V | 18 mOhm | 250 V | 4 PC Pin Horizontal No Base | Power Line | 105 ░C | -40 C | Through Hole | 2 | 1.929 in | 1.102 in | 12 A | 49 mm | 28 mm |
