UA30 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K

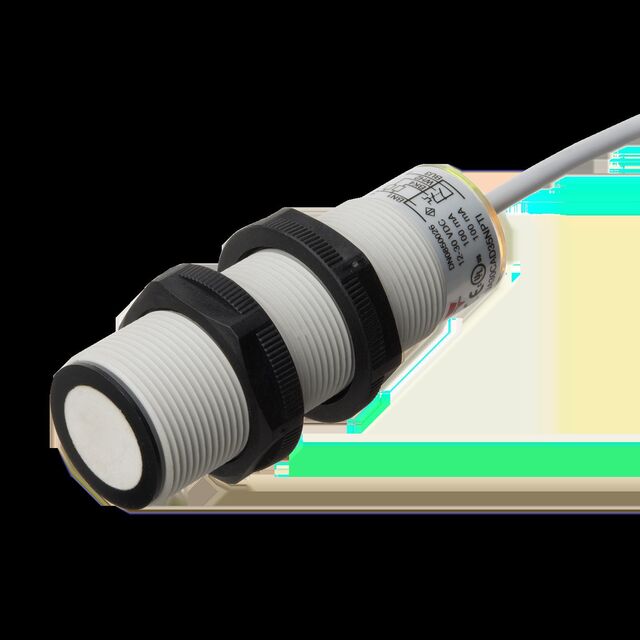

PROXIMITY SENSORS UPROX DR SS M30 0-10V+NPN, PLG
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensor Type | Package / Case | Indicator | Ingress Protection | Sensing Distance [Min] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Output Type | Termination Style | Response Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Material - Body | Shielding | Sensing Distance [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | 15 VDC | 30 VDC | Ultrasonic | Cylinder Threaded - M30 | LED | IP67 | 13.78 " | 350 mm | 137.795 in | 3500 mm | Analog Voltage NPN | Connector | 2 Hz | -20 ░C | 70 °C | Stainless Steel | Unshielded | |
 Carlo Gavazzi Inc. | 12 VDC | 30 VDC | Ultrasonic | Cylinder Threaded - M30 | LED | IP67 | 13.78 " | 350 mm | 137.795 in | 3500 mm | NPN | Cable Leads | 2 Hz | -20 ░C | 70 °C | Stainless Steel | Unshielded | |
 Carlo Gavazzi Inc. | 12 VDC | 30 VDC | Ultrasonic | Cylinder Threaded - M30 | LED | IP67 | 9.843 in | 250 mm | 137.795 in | Analog Current NPN | Cable Leads | 2 Hz | -20 ░C | 70 °C | Polybutylene Terephthalate (PBT) | Unshielded | 3500 mm |
