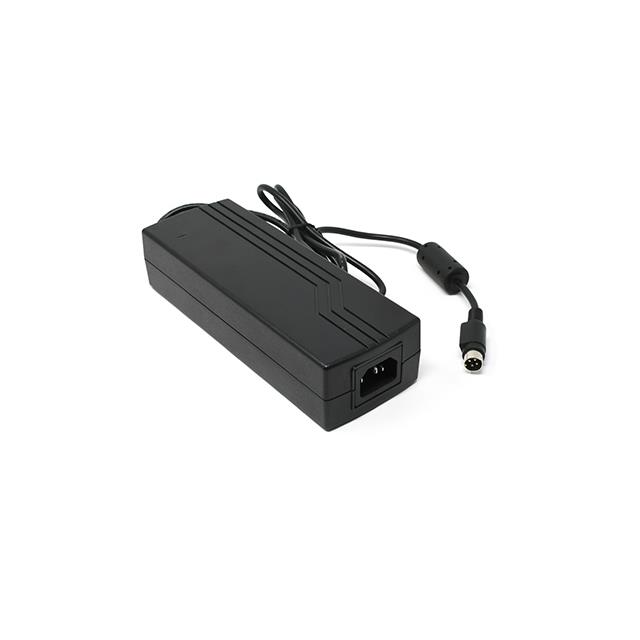

Medical Desktop Power Supply 36V 150 Watt
Medical Desktop Power Supply 36V 150 Watt
| Part | Power (Watts) | Input Connector | Applications | Approval Agency | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Form | Voltage - Output | Region Utilized | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Standard Number | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 150 W | IEC 320-C14 | Medical | CE cURus | Power DIN 4 Pin | 264 VAC | 90 VAC | Desktop (Class I) | 12 V | International | 210 mW | 0 °C | 60 °C | Cord (Sold Separately) | 60601-1 | Level VI | 40 mm | 179 mm | 7.05 " | 65 mm | 1.57 " | 2.56 in | 12.5 A |
 TT Electronics/BI | 150 W | IEC 320-C14 | Medical | CE cURus | Power DIN 4 Pin | 264 VAC | 90 VAC | Desktop (Class I) | 24 V | International | 210 mW | 0 °C | 60 °C | Cord (Sold Separately) | 60601-1 | Level VI | 40 mm | 179 mm | 7.05 " | 65 mm | 1.57 " | 2.56 in | 6.25 A |
TT Electronics/BI | 150 W | IEC 320-C14 | Medical | CE cURus | Power DIN 4 Pin | 264 VAC | 90 VAC | Desktop (Class I) | 48 V | International | 210 mW | 0 °C | 60 °C | Cord (Sold Separately) | 60601-1 | Level VI | 40 mm | 179 mm | 7.05 " | 65 mm | 1.57 " | 2.56 in | 3.13 A |
TT Electronics/BI | 150 W | IEC 320-C14 | Medical | CE cURus | Power DIN 4 Pin | 264 VAC | 90 VAC | Desktop (Class I) | 15 V | International | 210 mW | 0 °C | 60 °C | Cord (Sold Separately) | 60601-1 | Level VI | 40 mm | 179 mm | 7.05 " | 65 mm | 1.57 " | 2.56 in | 10 A |
