S-1000A Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

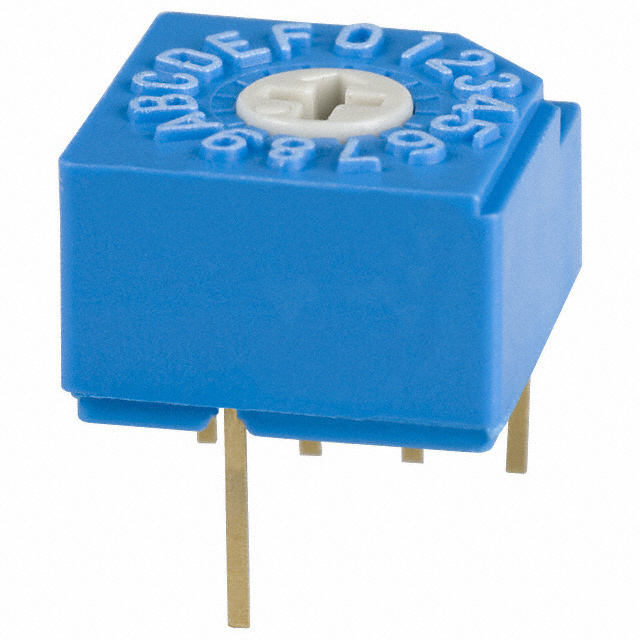

CODED ROTARY SWITCHES DIP ROTARY CODE HEX, REAL CODE, TOP ADJ.
| Part | Body Material | Electrical Life | Length [x] | Length [x] | Voltage Rating | Mounting Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Level | Pitch | Pitch | Contact Material | Current Rating (Amps) | Height Above Board [z] | Height Above Board [z] | Washable | Termination Style | Actuator Type | Number of Positions | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Polybutylene Terephthalate (PBT) | 10000 Cycles | 0.394 in | 10 mm | 5 V | Through Hole | Gold | 85 °C | -40 C | Flush Recessed | 2.54 mm | 0.1 " | Copper Alloy | 100 mA | 6.99 mm | 0.275 in | PC Pin | Rotary for Tool | 16 | Hexadecimal | |
 Nidec Components Corporation | Polybutylene Terephthalate (PBT) | 10000 Cycles | 0.394 in | 10 mm | 5 V | Through Hole | Gold | 85 °C | -40 C | Raised | 2.54 mm | 0.1 " | Copper Alloy | 100 mA | 12 mm | 0.472 in | PC Pin | Rotary with Knob | 16 | Hexadecimal Complement |
