BA08 Series

Catalog

IC REG LINEAR 8V 1A TO220FP-3

Part	Control Features	Package / Case	Voltage - Output (Min/Fixed)	Number of Regulators	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Protection Features	Mounting Type	Current - Supply (Max) [Max]	Current - Output	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	PSRR
Rohm Semiconductor BA08CC0WT-V5	Enable	TO-220-3 Full Pack	8 V	1	TO-220FP	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Through Hole	5 mA	1 A	Positive	125 °C	-40 C	55 dB

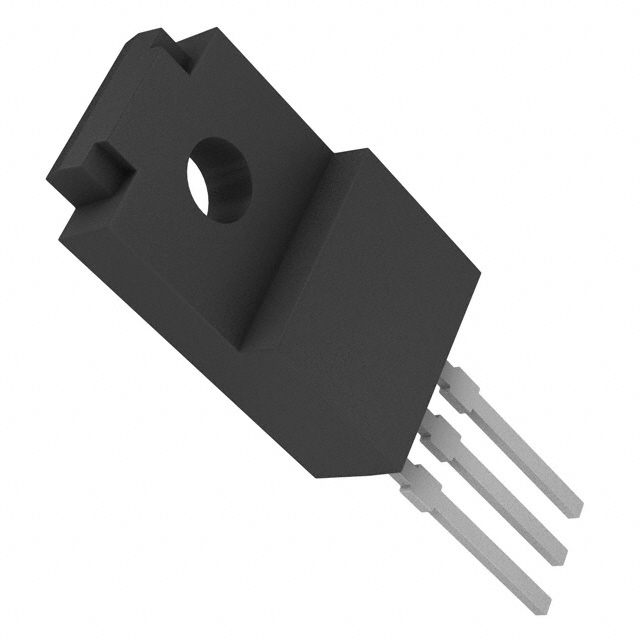

Rohm Semiconductor BA08CC0T		TO-220-3 Full Pack	8 V	1	TO-220FP	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Through Hole	5 mA	1 A	Positive	125 °C	-40 C	55 dB
Rohm Semiconductor BA08SFP-E2	Enable	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	8 V	1	TO-252-5	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Surface Mount	5 mA	1 A	Positive	85 °C	-40 C	55 dB

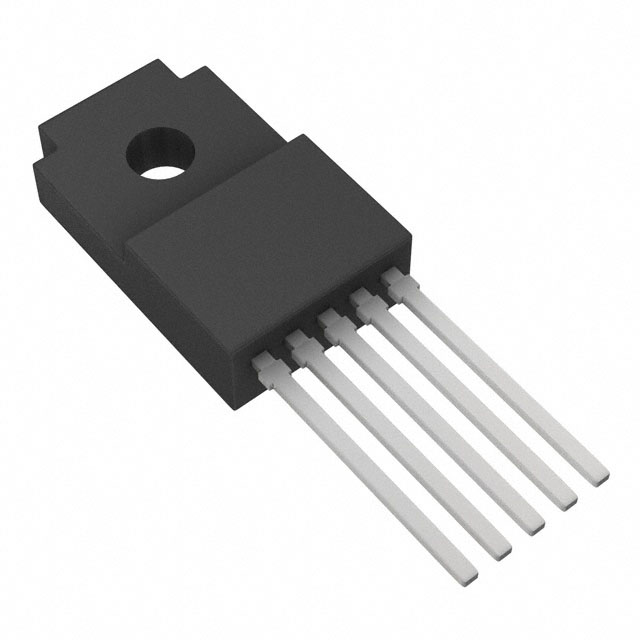

Rohm Semiconductor BA08CC0WT	Enable	TO-220-5 Full Pack	8 V	1	TO-220FP-5	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Through Hole	5 mA	1 A	Positive	125 °C	-40 C	55 dB
Rohm Semiconductor BA08ST	Enable	TO-220-3 Full Pack	8 V	1	TO-220FP	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Through Hole	5 mA	1 A	Positive	85 °C	-40 C	55 dB
Rohm Semiconductor BA08CC0WFP-E2	Enable	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	8 V	1	TO-252-5	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Surface Mount	5 mA	1 A	Positive	125 °C	-40 C	55 dB
Rohm Semiconductor BA08CC0FP-E2		DPAK (2 Leads + Tab) SC-63 TO-252-3	8 V	1	TO-252	25 V	2.5 mA	Over Current Over Temperature Over Voltage	Surface Mount	5 mA	1 A	Positive	125 °C	-40 C	55 dB
