LMLPC Series
Manufacturer: KYOCERA AVX
Beta
⌘K

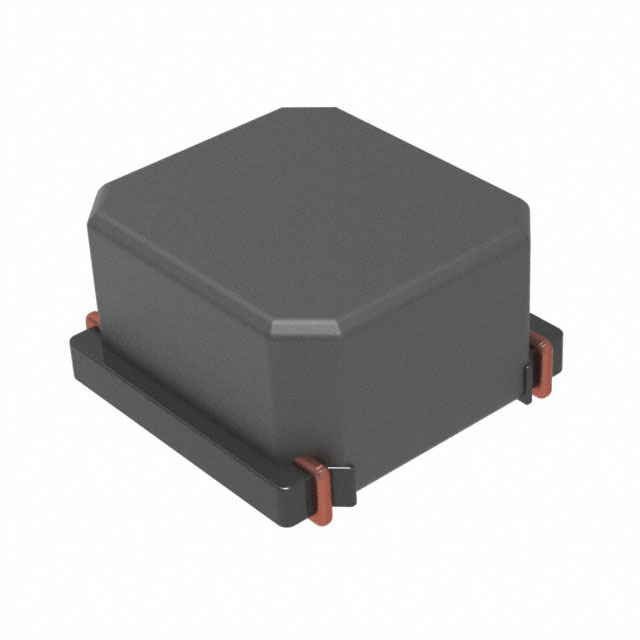

POWER INDUCTORS - SMD 4.7UH DCR= 0.018OHM 30% 0808
| Part | Tolerance | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) | Mounting Type | Current - Saturation (Isat) | Package / Case | Material - Core | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Inductance | Shielding | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 30 % | 4.1 A | 8 mm | 0.315 in | 8 mm | 0.315 in | 18 mOhm | Surface Mount | 4.7 A | Nonstandard | Ferrite | 4.2 mm | 0.165 " | 4.7 ÁH | Shielded | 100 kHz | 125 °C | -40 C |
