1393808 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GENERAL PURPOSE 72V

Part	Coil Resistance	Operate Time	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Coil Current	Coil Type	Release Time	Mounting Type	Switching Voltage [Max]	Contact Rating (Current)	Contact Material	Load - Max Switching	Must Operate Voltage	Contact Form
TE Connectivity AMP Connectors 1-1393808-1	7600 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	72 VDC	9.5 mA	Non Latching	3 ms	Socketable
TE Connectivity AMP Connectors 8-1393808-5	890 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	24 VDC	27 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W
TE Connectivity AMP Connectors 8-1393808-4	890 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	24 VDC	27 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	14.5 VDC	6PST-NO (6 Form A)
TE Connectivity AMP Connectors 4-1393808-6	150 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	10 VDC	66.7 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	7.1 VDC	4PDT (4 Form C)
TE Connectivity AMP Connectors 5-1393808-6	325 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	15 VDC	46.1 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	9.1 VDC	4PDT (4 Form C)
TE Connectivity AMP Connectors 3-1393808-0	28 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	5 VDC	179 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	3 VDC	4PDT (4 Form C)
TE Connectivity AMP Connectors 1393808-6	7600 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	72 VDC	9.5 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	48.4 VDC	4PDT (4 Form C)
TE Connectivity AMP Connectors 5-1393808-7	325 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	15 VDC	46.1 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	9.1 VDC	6PST-NO (6 Form A)

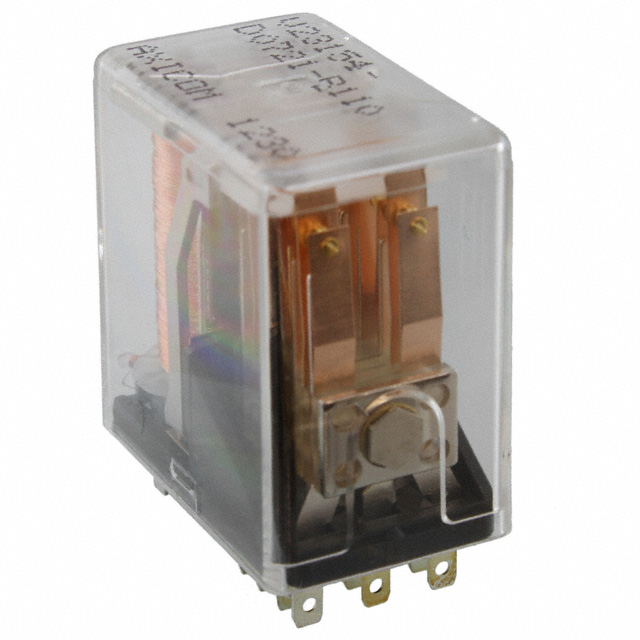

TE Connectivity AMP Connectors 8-1393808-3	890 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	24 VDC	27 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	14.5 VDC	4PDT (4 Form C)
TE Connectivity AMP Connectors 4-1393808-3	150 Ohms	7.5 ms	General Purpose	70 °C	-40 C	Plug In	10 VDC	66.7 mA	Non Latching	3 ms	Socketable	125 VAC 150 VDC	2 A	Gold (Au) Silver (Ag)	250 VA 300 W	5.8 VDC	4PDT (4 Form C)
