NXH800A100L4Q2F2 Series

IGBT Module, A-Type NPC 1000 V, 800 A IGBT

Catalog

IGBT Module, A-Type NPC 1000 V, 800 A IGBT

Part	Power - Max [Max]	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Input	Current - Collector (Ic) (Max) [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	NTC Thermistor

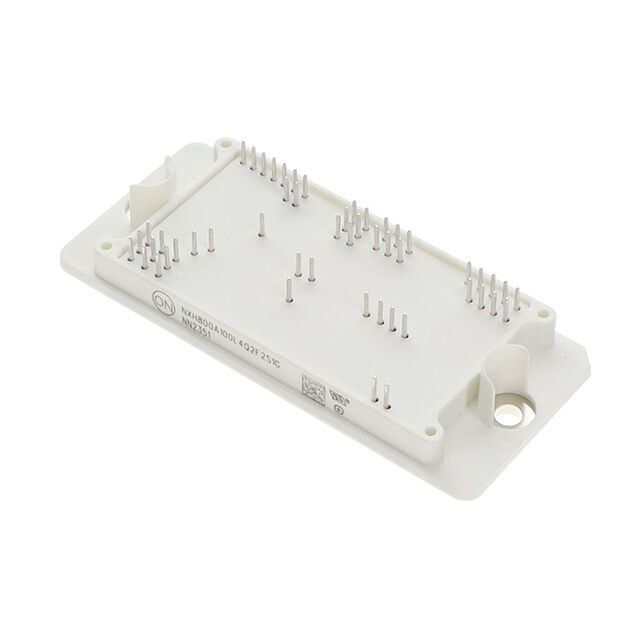

ON Semiconductor NXH800A100L4Q2F2S1G	714 W	49.7 nF	2.3 V	Chassis Mount	51-PIM/Q2PACK (93x47)	-40 C	175 °C	Trench Field Stop	Standard	309 A	Module	20 µA	1000 V	Three Level Inverter

Catalog

IGBT Module, A-Type NPC 1000 V, 800 A IGBT

Key Features

• Module with low thermal impedance baseplate

• Solder and press-fit options

Description

The NXH800A100L4Q2 is a power integrated module (PIM) containing a single A-type NPC stage containing 1000V FS4 IGBTs and 1000V Extremefast Diodes. The module contains an NTC thermistor.
