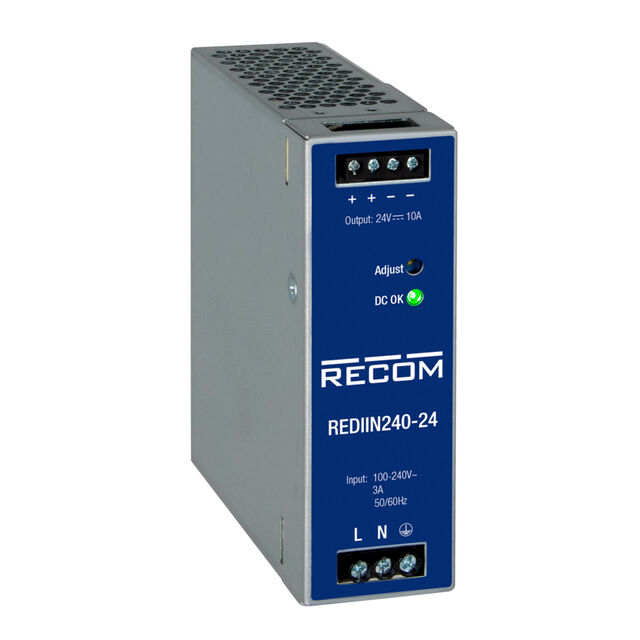

REDIIN240 Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC DIN RAIL POWER SUPPLY (PSU), ITE, HOUSEHOLD, INDUSTRIAL & LABORATORY EQUIPMENT, 1 OUTPUT
| Part | Number of Outputs | Input Type | Standard Number | Voltage - Isolation | Applications | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) | Efficiency | Voltage - Output 1 | Features | Operating Temperature [Min] | Operating Temperature [Max] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Power (Watts) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 | AC | 61010-1 62368-1 | 3000 V | ITE (Commercial) Laboratory | CE cULus cURus UKCA | 116.8 mm | 4.87 " | 1.57 " | 4.6 " | 123.7 mm | 39.9 mm | 5 A | 90.5 % | 48 V | Adjustable Output PFC Universal Input | -30 °C | 70 °C | 90 VAC | 264 VAC | 240 Watts | |
 Recom Power | 1 | AC | 61010-1 62368-1 | 3000 V | ITE (Commercial) Laboratory | CE cULus cURus UKCA | 116.8 mm | 4.87 " | 1.57 " | 4.6 " | 123.7 mm | 39.9 mm | 90 % | 24 V | Adjustable Output PFC Universal Input | -30 °C | 70 °C | 90 VAC | 264 VAC | 240 Watts | 10 A |
