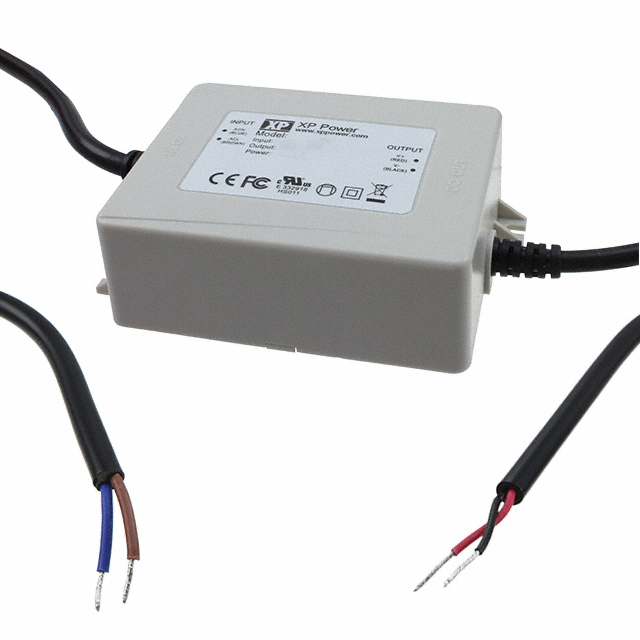

DLE35 Series

Manufacturer: XP Power

Catalog

LED DVR CC/CV AC/DC 16-24V 1.4A

Part	Weight [custom]	Weight [custom]	Mounting Type	Termination Style	Power (Watts)	Number of Outputs	Efficiency	Topology	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Ratings	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]
XP Power DLE35PS24	349.27 g	0.77 lb	Chassis Mount	Wire Leads	34 W	1	81 %	AC DC Converter	Constant Current Voltage	OCP OVP SCP	-20 ░C	50 °C	1.4 A	305 VAC	90 VAC	IP67	CE TUV UL	24 V	16 V	3750 VDC	2.89 "	73.5 mm	33 mm	1.29 in	93.5 mm	3.68 "
XP Power DLE35PS36	349.27 g	0.77 lb	Chassis Mount	Wire Leads	36 W	1		AC DC Converter	Constant Current Voltage	OCP OVP SCP	-20 ░C	50 °C	1 A	305 VAC	90 VAC	IP67	CE TUV UL	36 V	24 V	3750 VDC	2.89 "	73.5 mm	33 mm	1.29 in	93.5 mm	3.68 "
